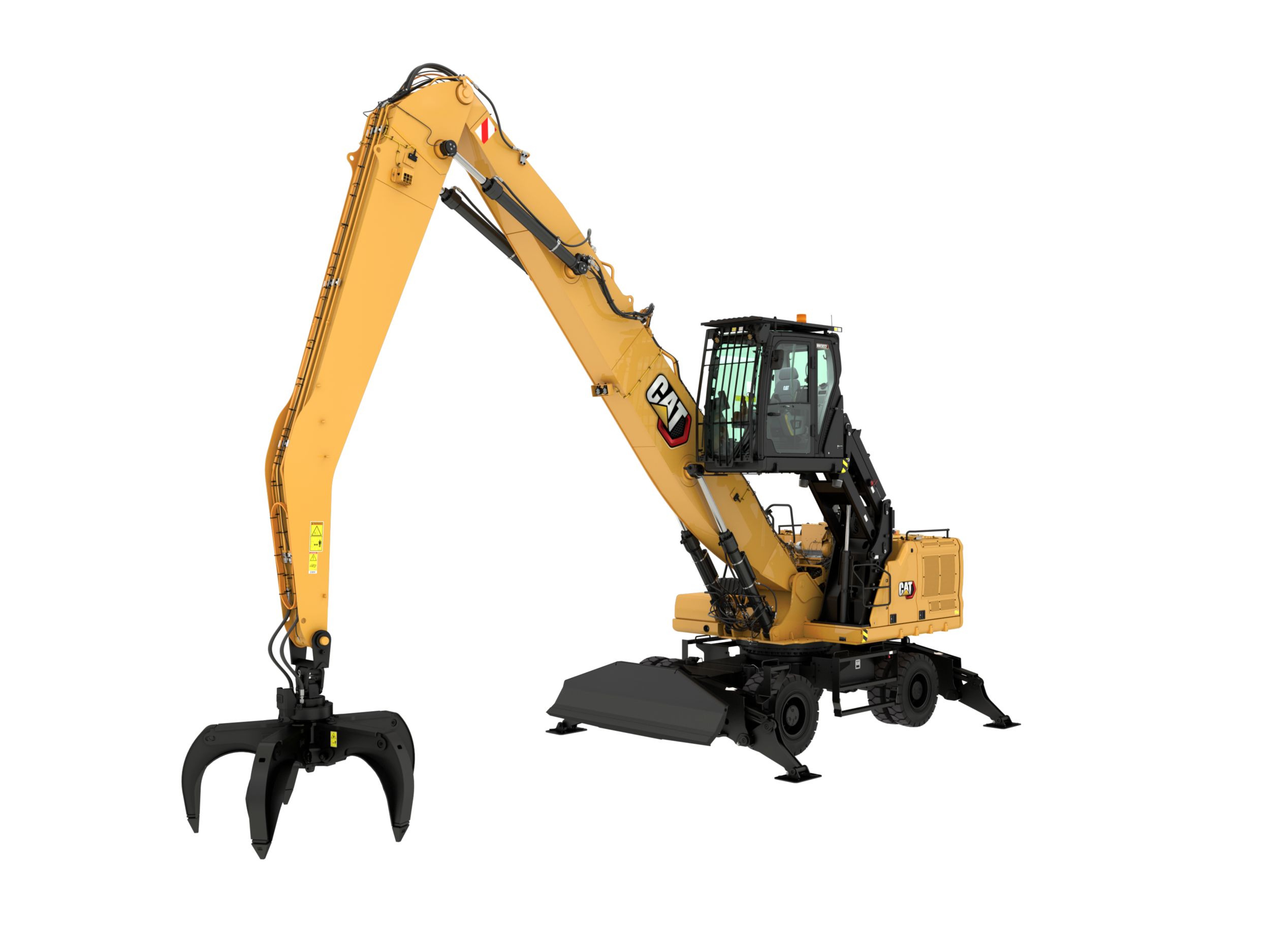

MH3032 Material Handler
The Cat® MH3032 bridges the gap between neighboring size classes. A waste blade and generator option further expand versatility in scrap, waste, and recycling applications. The MH3032 maximizes performance with its configuration options and industry leading technologies including Payload and E-Fence.
-
Engine
-
- Engine Model
- Cat C7.1
- Bore
- 4in
- Stroke
- 5in
- Displacement
- 428in³
- Note (1)
- Advertised power is tested per the specified standard in effect at the time of manufacture.
- Note (2)
- Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
-
Weights
-
- Operating Weight
- 73850lb
- Note
- Operating weight includes full fuel tank, operator, grapple 2000 kg (4,410 lb), and single tires. Weight varies depending on configuration.
-
Working Ranges
-
- Maximum Reach
- 46.2ft
- Boom
- MH 8.5 m (27'11")
- Stick
- 6.4 m (21'0")
- Maximum Height
- 50.5ft
- Maximum Dump Height
- 15ft
- Maximum Depth
- 16.7ft
- Boom Pin Height
- 35ft
-
Transmission
-
- Maximum Travel Speed
- 11mile/h
- Drawbar Pull
- 23380ft·lbf
- Maximum Gradeability
- 35.00%
-
Hydraulic System
-
- Maximum Pressure - Implements
- 5076psi
- Maximum Pressure - Swing
- 4061psi
- Maximum Pressure - Travel
- 5076psi
-
Swing Mechanism
-
- Swing Speed
- 8r/min
- Maximum Swing Torque
- 60680ft-lb
-
Service Refill Capacities
-
- Fuel Tank Capacity
- 125.2gal (US)
- Cooling System
- 6.6gal (US)
- Engine Oil
- 6.6gal (US)
- Rear Axle - Housing (Differential)
- 3.7gal (US)
- Final Drive
- 0.7gal (US)
- Powershift Transmission
- 0.7gal (US)
- Hydraulic System - Including Tank
- 80gal (US)
- Hydraulic Tank
- 39gal (US)
- Diesel Exhaust Fluid (DEF) Tank
- 11gal (US)
-
Dimensions
-
- Boom
- MH 8.5 m (27'11")
- Stick
- 6.4 m (21'0")
- Shipping Length
- 39ft
- Machine Length
- 18.4ft
- Tail Swing Radius
- 9.8ft
- Counterweight Clearance
- 4.5ft
- Cab Height- Lowered
- 11.2ft
- Cab Height- Lowered with FOGS
- 11.4ft
- Cab Height-Raised
- 19.7ft
- Cab Height- Raised with FOGS
- 19.9ft
- Wheel Base
- 9.8ft
- Shipping Width
- 9.8ft
- Ground Clearance
- 0.08ft
- Undercarriage Length
- 18.4ft
Standard Equipment:
-
Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
Cab
-
- Advanced sound suppressed TOPS cab (ISO 12117-2 compliant) with rubber mount
- High-resolution 254 mm (10") LCD touch screen monitor
- Automatic bi-level air conditioner
- Jog dial and shortcut keys for monitor control
- Keyless push-to-start engine control
- Tilt-up left-side console
- Air suspension premium seat with headrest, heater, and ventilator
- Dome and lower LED interior lights
-
Cat Technology
-
- Cat Product Link
- Remote Services capability
-
Electrical System
-
- Maintenance-free battery
- LED chassis light, left-hand/right-hand boom lights, cab lights - 1800 lumens
- Centralized electrical disconnect switch
- Programmable time delay LED working lights after engine shutdown
-
Engine
-
- C7.1 diesel engine
- Three selectable modes: Power, Smart, Eco
- 4500 m (14,760 ft) altitude capability with engine power derate above 3000 m (9,840 ft)
- 43°C (109°F) high-ambient cooling capacity with derate
- -20°C (-4°F) cold start capability
- Reversible electric cooling fans
-
Hydraulic System
-
- Electric main control valve
- Boom and stick regeneration circuits
- Automatic hydraulic oil warm up
- Boom and stick lowering control check valves
- Element type main hydraulic filter
-
Safety And Security
-
- One key security system
- Door and cap lock
- Travel/swing lock
- Signaling/warning horn
- Travel alarm
- Secondary engine shutoff switch
- Openable rear window as emergency exit
- Rearview camera
- Right-side-view camera
- Right-side front-view mirror
-
Undercarriage And Structures
-
- 5300 kg (11,700 lb) counterweight
- All wheel drive
- Automatic brake/axle lock
- Creeper speed
- Electronic swing and travel lock
- Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force
- Lockable, oscillating front axle with remote greasing point
- Two speed hydrostatic transmission
- Tie down points on base frame (ISO 15818 compliant)
Optional Equipment:
-
Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
Boom And Sticks
-
- 6.4 m (21'0") drop nose stick
- Stickless machine configuration
-
Cab
-
- Fixed one-piece laminated windshield and roof window (P5A glass)
- Fixed two-piece laminated windshield and roof window (P8B glass)
-
Electrical System
-
- Generator, 20 kW with wiring to stick nose
- Rotating beacon
-
Engine
-
- Cold start, block heater
-
Hydraulic System
-
- Fine swing control function
-
Undercarriage And Structures
-
- PR16 dual air tires
- Solid rubber dual tires
