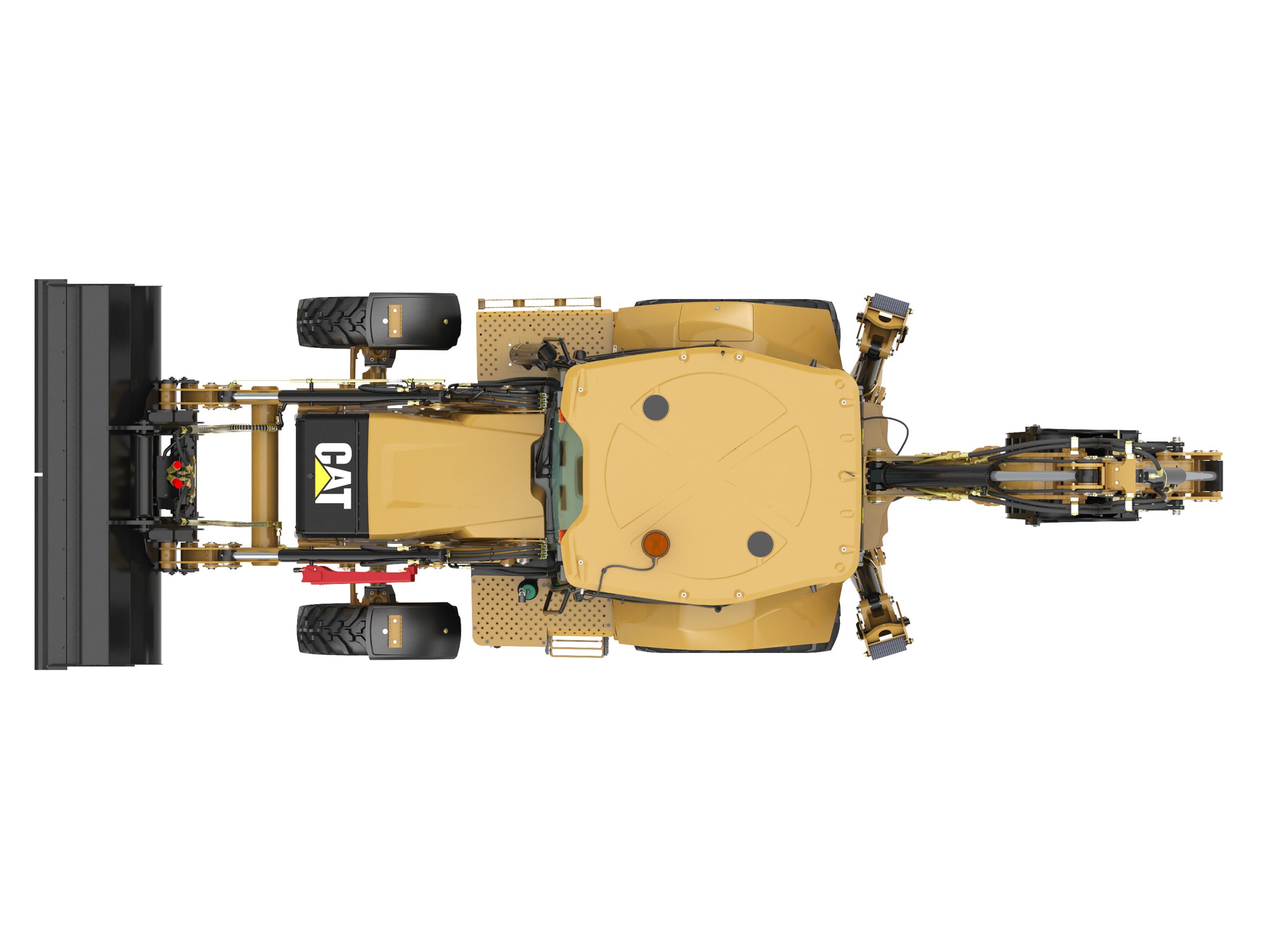

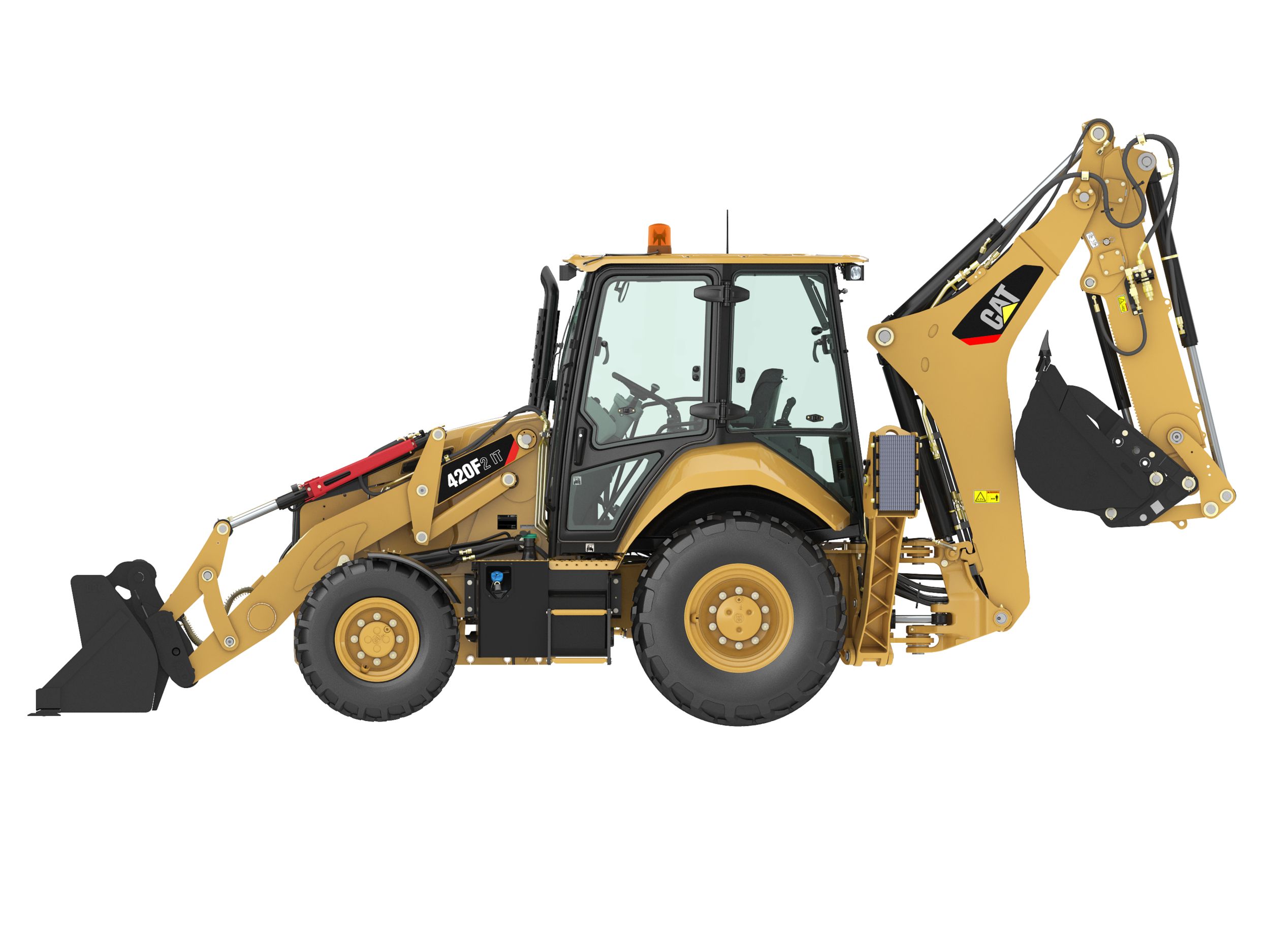

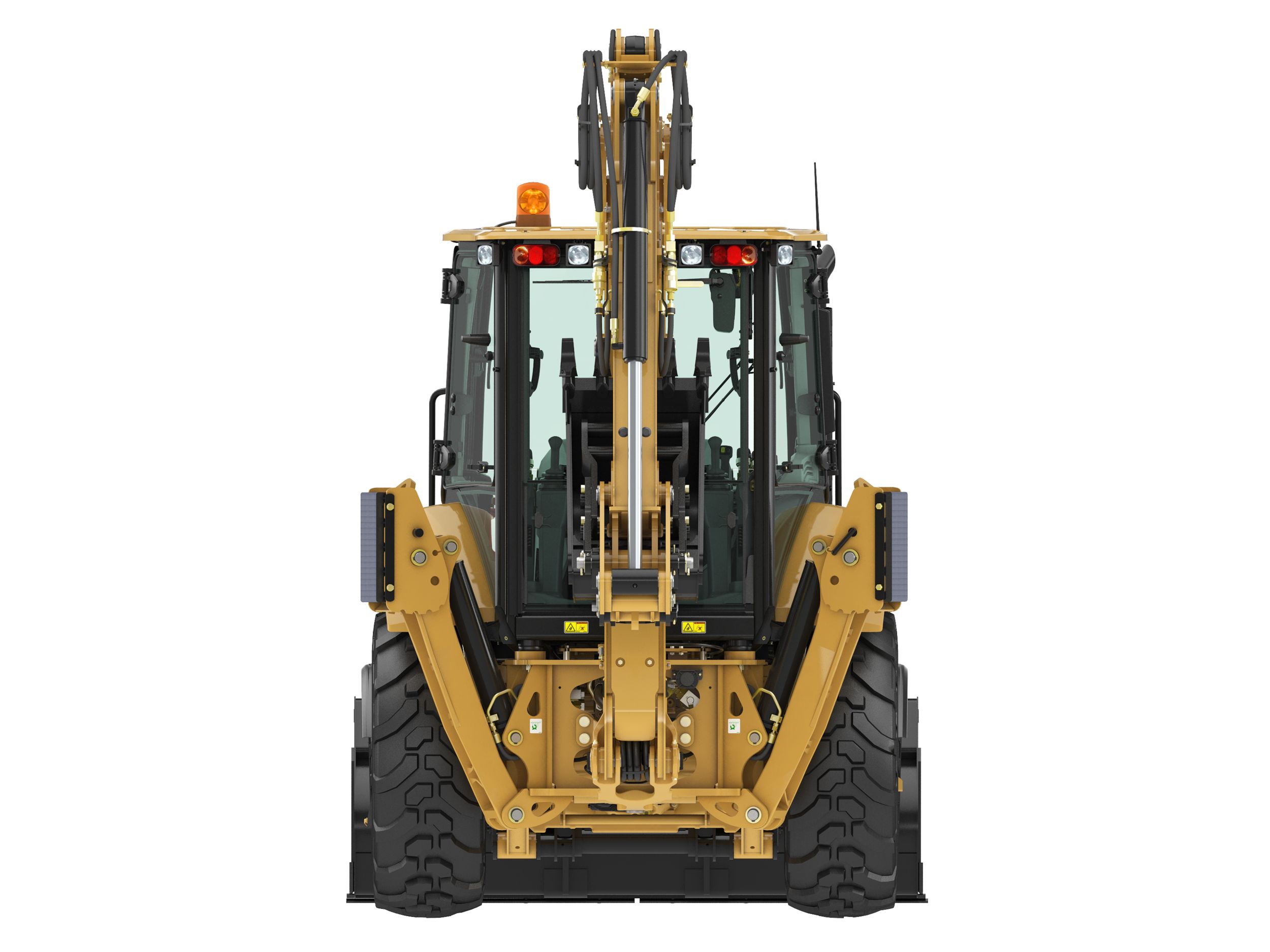

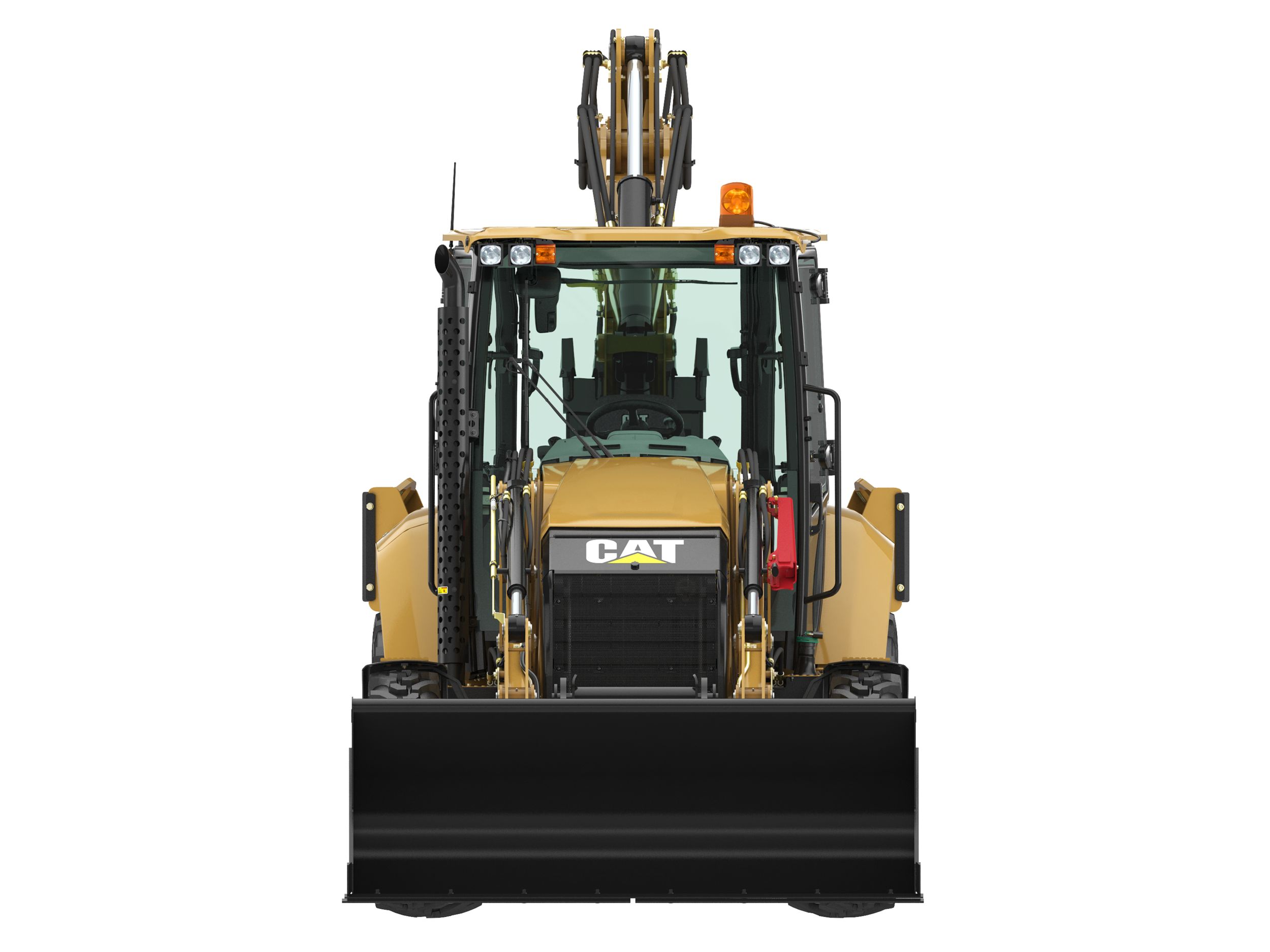

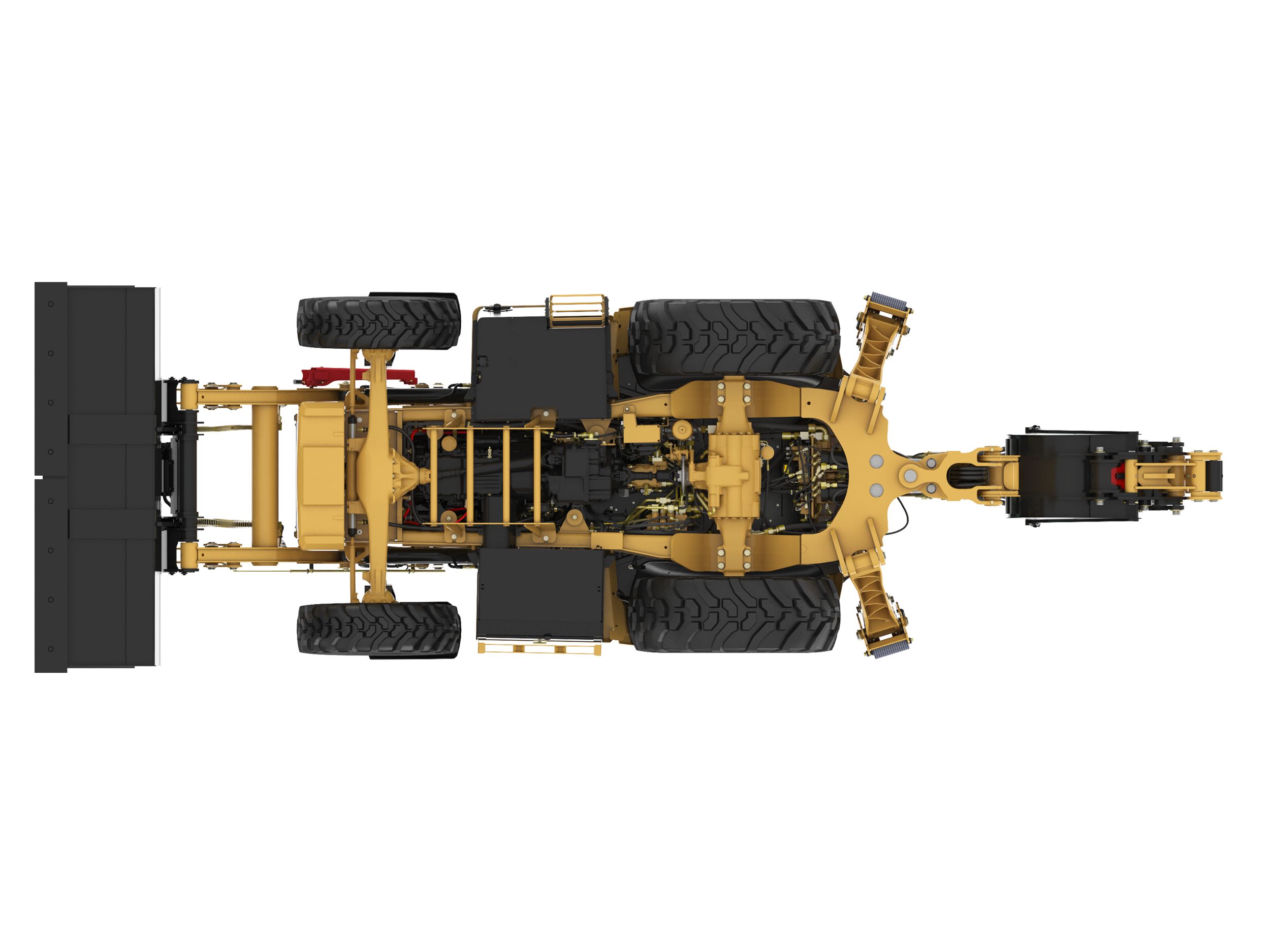

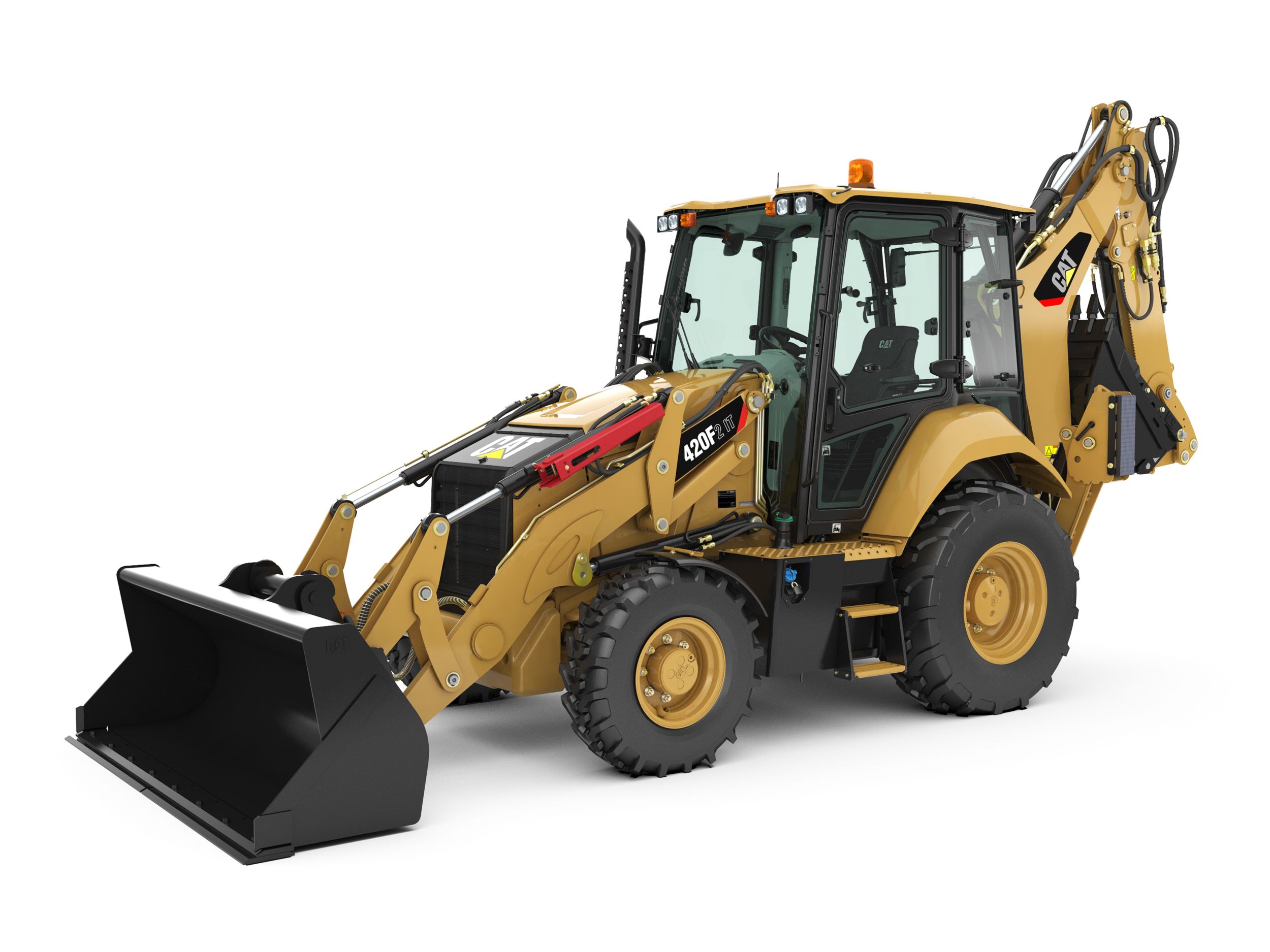

420F2/420F2 IT Backhoe Loader
Experience the Backhoe Loader designed around customer feedback. The Cat 420F2 Backhoe Loader puts all the machine controls at the operator’s fingertips. Operate all auxiliary controls with thumb rollers. Move from job site to job site quickly and smoothly with the additional 6th gear on the autoshift transmission and optional lock-up torque converter.
Net Power - SAE J1349
93HP
Bore
4.13in
Stroke
5in
Displacement
268in³
Net Peak Torque - 1,400 rpm
322ft-lb
Rated Net Power - SAE J1349
93HP
Rated Net Power - ISO 9249
94HP
Note
Engine meets Tier 4 Final emission standards.
Net Peak Power - 1,800 rpm - SAE J1349
105HP
Net Peak Power - 1,800 rpm - ISO 9249
106HP
Rated Net Power - 2,200 rpm - EEC 80/1269
94HP
Net Peak Power - 1,800 rpm - EEC 80/1269
106HP
Gross Power - SAE J1995
102HP
Net Power - 2,200 rpm - SAE J1349
93HP
Net Torque Rise - 1,400 rpm - SAE J1349
46%
Rated Net Power - 2,200 rpm - ISO 9249
94HP
Engine Model
Cat® C4.4 ACERT™
Gross Power - ISO 14396
100HP
Dig Depth - Standard
14.3ft
Dig Depth - E-Stick Extended
17.9ft
Operating Weight - Maximum
24251lb
Cab - ROPS/FOPS
359lb
Ride Control
31lb
Four Wheel Drive
364lb
Counterweights - Option 1
255lb
Air Conditioning
93lb
Counterweights - Option 2
530lb
Counterweights - Option 3
1015lb
Auto-Shift Transmission
525lb
MP Bucket (1.00 m3/1.30 yd3) - No Forks or Teeth
1642lb
Loader, IT with Quick Coupler
699lb
Extendible Stick
672lb
Operating Weight - Maximum - ROPS Capacity
24251lb
Pump Type
Variable Flow, Axial Piston
System Pressure - Backhoe
3600psi
Pump Capacity at 2,200 rpm
43gal/min
System Pressure - Loader
3600psi
Type
Closed Center
Rod Diameter
1.4in
Stroke
4.7in
Turning Circle - (inner wheel not braked) - Outside Front Wheels
26.8ft
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket
36ft
Axle Oscillation
11°
Power Steering
Hydrostatic
Bore
2.6in
Type
Front Wheel
Feature (1)
Brakes meet the following standards: SAE J1473 and ISO 3450 requirements.
Feature (4)
Parking/secondary brakes are independent of the service brake system.
Feature (3)
Foot operated brake pedals can be interlocked for roading.
Feature (5)
Parking brake is mechanically applied through an adjustable hand lever located on the right console.
Feature (2)
Self-adjusting, completely enclosed and sealed.
Hydraulic Tank
10.6gal (US)
Note (1)
* Must meet the requirements outlined in ISO 22241.
Note (2)
Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur.
Rear Axle
4.4gal (US)
Transmission - Power Shuttle - 2WD
4gal (US)
Fuel Tank
42gal (US)
Cooling System with Air Conditioning
5.9gal (US)
Front Axle (4WD) - Planetaries
0.2gal (US)
Engine Oil - With Filter
2.3gal (US)
Diesel Exhaust Fluid*
5gal (US)
Hydraulic System
25.1gal (US)
Transmission - Auto-Shift - 4WD
5gal (US)
Front Axle (4WD)
2.9gal (US)
Rear Axle - Planetaries
0.4gal (US)
Transmission - Power Shuttle - 4WD
4gal (US)
Feature (10)
Dry-type axial seal air cleaner with integral precleaner, automatic dust ejection system, and filter condition indicator.
Feature (11)
Direct electric, 12-volt starting and charging system with 880 CCA Group 31 maintenance free battery.
Feature (9)
Direct injection fuel system provides accurate fuel delivery; remote mounted electric lift pump improves serviceability.
Feature (13)
High contact ratio/gear train, peripheral fixed isolation top cover and open deck block design reduce bare engine noise.
Feature (7)
Cylinder head is high strength, cast iron alloy construction with extra duty wall and deck thickness.
Feature (14)
Higher low end torque for better engine/machine performance.
Feature (2)
Three-ring pistons made of lightweight, silicon/aluminum alloy for strength and maximum thermal conductivity.
Feature (3)
Forged chrome/molybdenum-steel crankshaft with crankshaft with either induction hardened or nitrocarburized journals.
Feature (6)
Cylinder block is high strength, cast iron alloy of deep skirt, monobloc design for increased strength and long life.
Feature (1)
Regeneration is passive and does not require any input from the operator or disrupt work.
Feature (4)
Front and rear crankshaft oil seals are “lip” type Viton and PTFE designs featuring an integral dust lip.
Feature (5)
Heat resistant, silicone-chrome steel intake and STELLITE-faced exhaust valves provide long life.
Feature (8)
Cylinder head's intake and exhaust ports are precision cast to promote optimum gas flow.
Feature (12)
Standard glow plug starting aid system for efficient cold weather starting.
Feature (15)
Engine is equipped with electric fuel priming pump.
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 6th
25mile/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Reverse - 1st
3.6mile/h
Auto-Shift - Optional - Reverse 3rd
17mile/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 1st
3.6mile/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 6th LUC
25mile/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 5th LUC
15mile/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 4th
12mile/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Reverse - 3rd
17mile/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 3rd
7mile/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Reverse - 2nd
7.6mile/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 5th
14mile/h
Power Shuttle Transmission - Forward 4th
25mile/h
Power Shuttle Transmission - Reverse 4th
25mile/h
Auto-Shift - Optional - Forward 6th
25mile/h
Auto-Shift - Optional - Forward 1st
3.6mile/h
Power Shuttle Transmission - Reverse 3rd
13mile/h
Power Shuttle Transmission - Forward 3rd
13mile/h
Auto-Shift - Optional - Reverse 2nd
7.6mile/h
Power Shuttle Transmission - Forward 1st
3.4mile/h
Auto-Shift - Optional - Reverse 1st
3.6mile/h
Auto-Shift - Optional - Forward 5th
16mile/h
Power Shuttle Transmission - Reverse 1st
3.4mile/h
Power Shuttle Transmission - Reverse 2nd
5.6mile/h
Auto-Shift - Optional - Forward 2nd
5.7mile/h
Auto-Shift - Optional - Forward 3rd
7mile/h
Power Shuttle Transmission - Forward 2nd
5.6mile/h
Auto-Shift - Optional - Forward 4th
12mile/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 2nd
5.7mile/h
Choice 5
Front: 340/80R 18/Rear: 500/70R 24 RT
Choice 2
Front: 12.5/80-18 (12 ply) 1-3/Rear: 19.5L-24 (12 ply) ATU
Choice 3
Front: 12.5/80-18 NHS (12 ply) 1-3/Rear: 21L-24 (16 ply) R4 ATU
Choice 4
Front: 340/80R 18/Rear: 19.5L-24 (12 ply) R4 ATU
Choice 1
Front: 11L-16 (12 ply) F-3/Rear: 19.5L-24 (12 ply) R4 ATU
Cab - ROPS
SAE J1040 MAY94; ISO 3741 1994
Cab - Sound
ANSI/SAE J1166 OCT98 is 79 dB(A)
Cab - FOPS
SAE J/ISO 3449 APR98 LEVEL II and ISO 3449: 1992 LEVEL II
Brakes
SAE J/ISO 3450; ISO 3450 1996
Exterior Sound
SAE J188 JUN86 is 76 dB(A)
Axle Oscillation
10 Degrees
Rear Axle - Static
50582lb
Front Axle (4WD) - Dynamic
20233lb
Front Axle (2WD) - Static
50582lb
Front Axle (2WD) - Dynamic
20233lb
Front Axle (4WD) - Static
50582lb
Rear Axle - Dynamic
20233lb
- Battery, additional, 880 CCA
- Cab, deluxe
- Cold weather fuel (–30° C/–22° F)
- Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
- Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
- Fenders, front with integral steps
- Four Wheel Drive
- Guard, boom protection plate
- Guard, stabilizer, rock
- Hydraulic valves, loader (3rd valve for GP, MP or Quick Coupler)
- Hydraulic valves, backhoe 6 function
- Hydraulic lines, combined function auxiliary
- Loader, IT with Quick Coupler and pilot loader control
- Product Link, satellite, PL631E
- Product Link, cellular, PL641I
- Quick Coupler, hydraulic, dual lock
- Quick Coupler, manual, dual lock
- Quick Coupler, pin lock
- Radio and CD player
- Radio and CD player, Bluetooth
- Ride Control
- Rotating beacon, magnetic mount
- Seat belt, 75 mm (3 in)
- Seat, heated
- Security system keypad
- Stabilizer pads, reversible
- Stick, extendible
- Storage box
- Transmission, AutoShift
- Transmission, AutoShift with lock-up torque converter
- Vandalism protection, gauge cover
- Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.
- Adjustable auxiliary controls, backhoe loader
- Air cleaner
- Alarm, back-up
- Alternator, 150 amp
- Audible system fault alarm
- Automatic Engine Speed Control (AESC)
- Battery, maintenance-free, 880 CCA
- Battery disconnect switch
- Battery remote jumpstart
- Boom transport lock
- Brace, lift cylinder
- Brake, secondary parking
- Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
- Bucket level indicator
- Canopy, ROPS/FOPS
- Cat cushion swing system
- Coat restraint
- Coolant/antifreeze, extended life
- Counterweight, bumper
- Dome light (cab only)
- Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
- Differential lock, loader joystick
- Engine, Cat C4.4 ACERT (Direct Injection Turbocharged), meets Tier 4 Final emission standards, selective catalyst reduction, diesel oxidation catalyst (DOC)
- Engine enclosure, sound suppression removal panels
- Face seals, O-ring
- Fan, suction and guard
- Fast reversing shuttle, all gears
- Fenders, rear
- Filters, spin-on: fuel, engine oil, transmission oil, water separator
- Filters, bowl and cartridge: hydraulic fluid
- Flashing hazards/signal lights
- Floor mat
- Fuel tank, fully enclosed
- Fully hinged front grill for cooling package cleaning access
- Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
- Ground level fuel fill and DEF fill
- High ambient cooling package
- Hood lock, inside cab
- Hydraulic hose, XT™
- Hydraulic oil cooler
- Hydraulic oil level sight gauge
- Hydraulic valve, hydrostatic steering
- Hydraulic valves, loader 2 function
- Hydraulic valves, backhoe 5 function
- Hydraulics, load sensing with variable displacement piston pump
- Indicator lights: Eco mode active, water in fuel, remote dial throttle active, engine warning, warning lamp, emissions module malfunction, AESC active, low battery/charging system warning, high hydraulic oil temperature; LCD warnings: engine oil pressure, machine locked (if equipped), service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
- Instrument panel lights
- Joystick controls: pilot operated, excavator-style with pattern changer
- Key start/stop system
- LCD screen: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, oil life reset, DPF force regeneration, maintenance intervals, ECM/system info
- Lights, working (4 front, 4 rear)
- Loader, self-leveling, return-to-dig and transmission disconnect switch
- Loader, single tilt
- Mirror, rearview
- One-touch low idle
- Open circuit breather
- Pattern changer, in cab
- Power receptacle, 12 volt, 2 internal, 1 external
- Power steering, hydrostatic
- Radio ready cab
- Seat belt, retractable, 51 mm (2 in)
- Socket, two roof
- Stabilizer shoes, street
- Steering knob
- Seat, air suspension, fabric or vinyl cover, with armrest
- Starting system, glow plugs
- Steering, hydrostatic
- Storage compartment, lockable
- Storage tray
- Stop and tail lights
- Swing transport lock
- Tilt steering wheel
- Tires
- Toolbox, external, lockable
- Torque converter
- Throttle, hand and foot, electronic
- Transmission, four speed, syncromesh
- Transmission neutralizer switch
- Transport tie-downs
- Two Wheel Drive
- Vandalism locks, four
- Warning horn, electric
