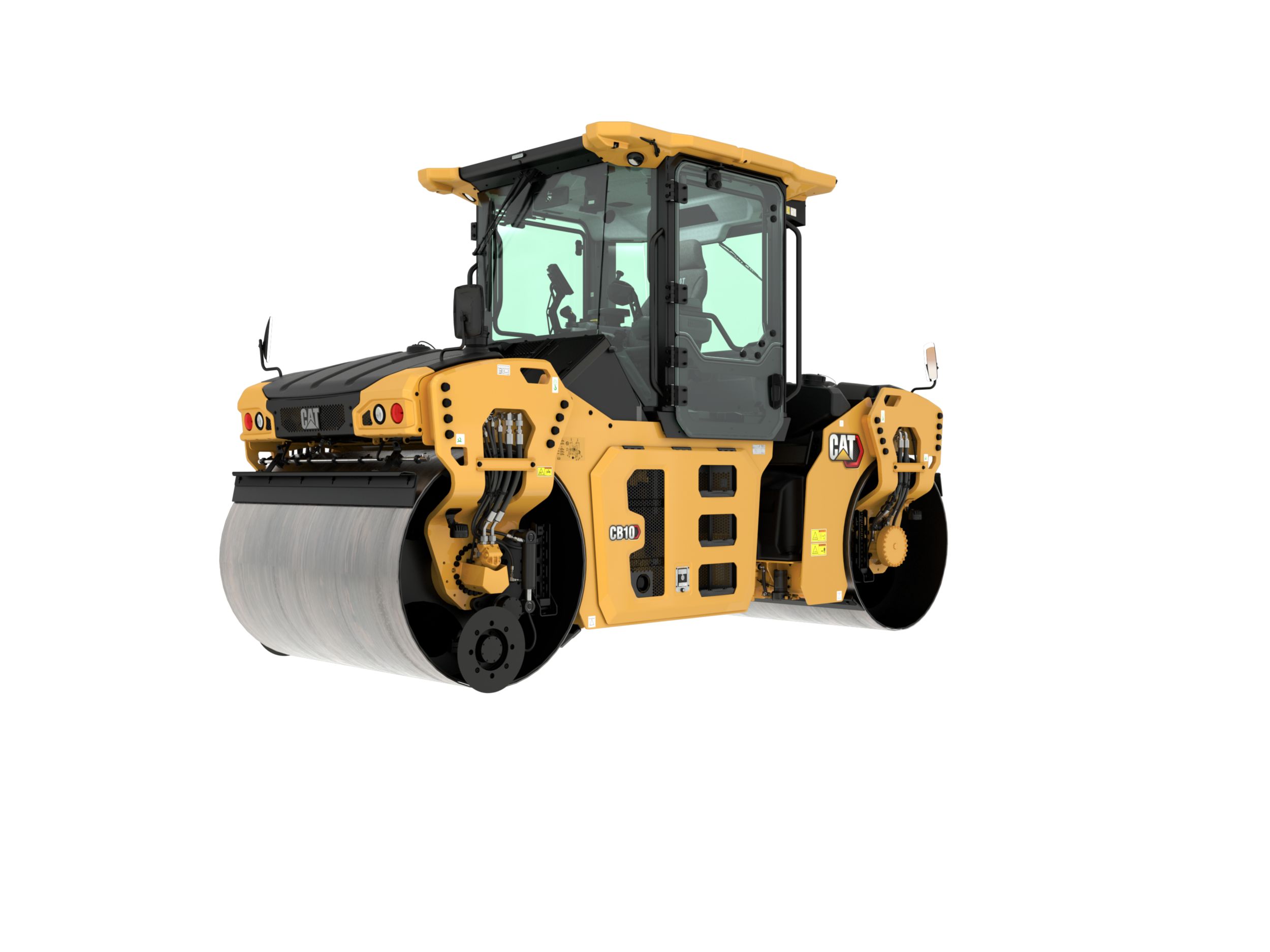

CB10
The Cat® CB10 Asphalt Compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360º seating make this compactor a perfect match for urban streets, highways, and other intermediate-type applications.
Operating Weight - With Cab
22255lb
Standard Operating Weight with ROPS
21642lb
Maximum Operating Weight with Cab
23197lb
Maximum Operating Weight with ROPS
22575lb
Standard Compaction Width
67in
Maximum Compaction Width
73in
Static Linear Load - With Cab
173lb/in
Static Linear Load - With ROPS/FOPS
168lb/in
Travel Speed - Maximum
7mile/h
Overall Length
186in
Overall Width
85in
Height - With ROPS/FOPS or Cab
118in
Wheel Base
139in
Drum Diameter
47in
Engine Model
Cat® C3.6
Engine Power (1)
120hp
Drum Width
67in
Centrifugal Force per Drum - Maximum
14185lb
Centrifugal Force per Drum - Minimum
11982lb
Nominal Amplitude - High
0.034in
Nominal Amplitude - Low
0.01in
Vibration Selection
Independent per drum, front only, rear only, both
Fuel Tank Capacity
36.5gal (US)
Water Spray Tank Capacity
225gal (US)
-
- Operating Environment
-
- 360° seat positioning w/sliding station
- Platform - Cab
- Steering wheel - elevated position, left side
- Suspension seat - with heat
- Seat headrest
-
- Technology
-
- CMV accelerometer - front drum
- GNSS Mapping - temperature and passcount
- Infrared asphalt temperature sensors
-
- Powertrain
-
- Hitch - offset
- Hydraulic oil - biodegradeable
-
- Vibratory System
-
- Edge Management - Cutoff, Bevel
- Mats - cocoa
- Mats - water distribution
- Rear drum oscillation kit - field installed drum
- Split Drums – front and rear
- Two amplitude/two frequency w/ oscillation
- Versa Vibe_both drums (U.S. and Canada)
- Versa Vibe with Oscillation (U.S. and Canada)
-
- Service And Maintenance
-
- Freeze protection - water spray system
-
- Safety
-
- Alarm, back up
- Cameras – 360º viewing _ROPS mounted
- Cameras – front and rear bumber mounted
- LED working lights with turn signals
- LED auxiliary lighting - 1000/2000 lumin
- Mirror package
- Steps, rear drum water spray refill
-
- Operating Environment
-
- 180º seat positioning w/ sliding station
- Adjustable armrests
- Full-color display with touchscreen operation
- Platform ROPS/FOPS
- Propel lever w/ 4-button control
- Steering wheel - fixed position, left side
- Suspension seat - no heat
- Seatbelt - 76 mm (3 in) high visibility
- Vandalism protection
-
- Technology
-
- Visionlink®
- Remote flash
- Remote troubleshooting
-
- Powertrain
-
- C3.6 4-cylinder
-
- Electrical System
-
- 150 amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Batteries - maintenance free
- Cat® Electronic Technician (Cat ET)
- Remote start / charge receptacle
-
- Vibratory System
-
- Two amplitude/two frequency - both drums
-
- Service And Maintenance
-
- 2 year/2000 hour oscillatory vibration system service interval
- 3 year/3000 hour conventional vibratory system service interval
- Grouped filters with ground level access
- Maintenance-free hitch
- Remote access drains
- Sampling ports for Scheduled Oil Sampling (SOS℠)
- Sight gauges - engine coolant and hydraulic oil
-
- Safety
-
- Alarm, back up
- Horn, warning (front and rear)
- LED working lights
- Steps, front drum fuel refill
- Warning, LED safety beacons
