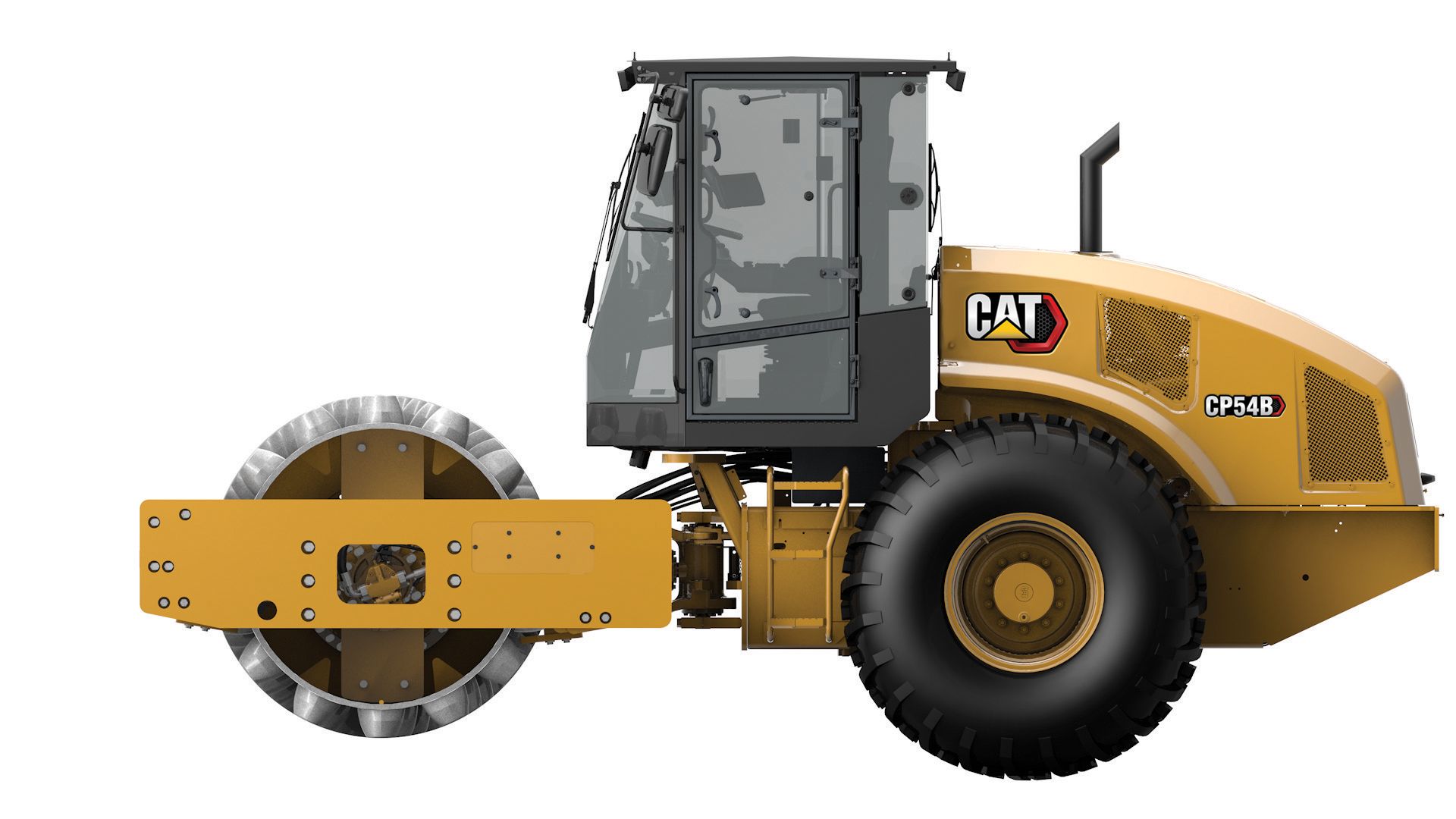

CP54B Vibratory Soil Compactor
CP54B Vibratory Soil Compactor
The CP54B provides exceptional performance for cohesive and semi-cohesive soil compaction applications.
Operating Weight - With Cab
24539lb
Weight - Drum with Cab
14092lb
Weight - Drum with ROPS/FOPS
13887lb
Compaction Width
84in
Travel Speed - Maximum
6.8mile/h
Ground Clearance
17.7in
Turning Radius - Inside Drum Edge
12.08ft
Gross Power
131hp
Engine Model
Cat C4.4 with ACERT
Fuel Tank Capacity
64gal (US)
Height - With ROPS/FOPS or Cab
10.25ft
Drum Diameter
51in
Drum Width
84in
Overall Width
7.58ft
Drum Diameter - Over Pads
61in
Wheel Base
9.58ft
Overall Length
19.17ft
Centrifugal Force - Minimum
29900lb
Variable Frequency Option Range
23.3 - 30.5 Hz (1400-1830 vpm)
Nominal Amplitude - High
0.075in
Centrifugal Force - Maximum
59800lb
Vibratory Frequency - Standard
30.5 Hz (1830 vpm)
Nominal Amplitude - Low
0.035in
Tires
23.1 x 26
