D11 XE
D11 XE

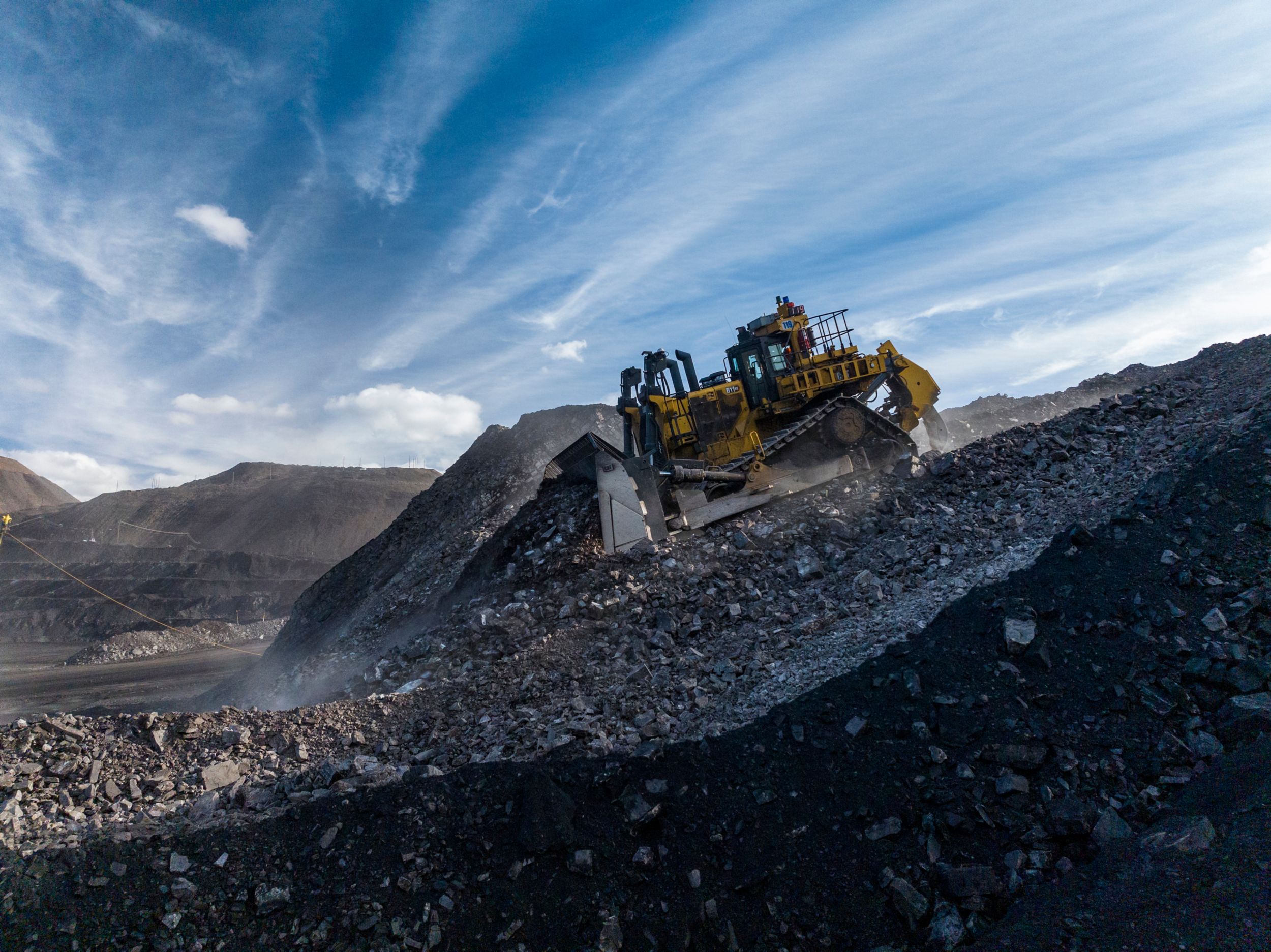

The Cat® D11 XE is the most efficient, highest-producing D11 ever. It’s built on a legacy of performance and reliability, with a Caterpillar-designed electric powertrain that improves fuel efficiency and increases productivity.
It’s a flexible machine that can handle any application you throw at it, no matter how harsh the conditions of your site. It’s easier to operate and maintain, and it’s built to last 20% longer between rebuilds. The result? You’ll move more material per hour, use less fuel, produce less greenhouse gas and achieve a lower total cost of ownership.
Engine Model
Cat® C32B
Engine Power - Net SAE J1349/ISO 9249 - Forward
861hp
Displacement
1959in³
Engine Power - Net SAE J1349/ISO 9249 - Reverse
956hp
Note (1)
*Excludes all fan losses.
Note (2)
Engine ratings apply at 1,600 rpm.
Note (3)
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Operating Weight
238794lb
Operating Weight - Carrydozer
257958lb
Note (1)
Operating weight includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator.
Note (2)
CD Operating Weight includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, singleshank ripper, and operator.
Ground Clearance*
31.4in
Track Gauge
114in
Width - Over Trunnions
172.4in
Height - FOPS Cab*
173.4in
Height - Top of Stack*
179.1in
Height - ROPS/Canopy*
185.9in
Drawbar Height (Center of Clevis)*
37.1in
Length - Track on Ground
175in
Overall Length - Basic Tractor
242.5in
Length - Basic Tractor - With Drawbar
242.5in
Length - With SU-Blade**
337.8in
Length - With U-Blade
340.2in
Length - With Single-Shank Ripper
319.2in
Length - With Multi-Shank Ripper
331.8in
Width - Without Trunnions - Standard Shoe
148.9in
Note (1)
*Includes grouser height for total dimensions on hard surfaces.
Note (2)
**CD Blade on D11/D11 XE CD
Semi-Universal (SU)* Capacity
35.6yd³
Semi-Universal (SU)* Width Over Endbits
219.8in
U-Blade Capacity
45yd³
U-Blade Width
249.6in
Reclamation Universal - Blade capacity (SAE J1265)
55yd³
Reclamation Universal - Width with blade (over end bits)
251.9in
Carry Dozer - Blade capacity (SAE J1265)
57yd³
Carry Dozer - Width with blade (over end bits)
263.9in
Maximum penetration force * (shank vertical)
68195lb
Maximum penetration depth (standard tip)
63.5in
Pryout Force
146991lb
Maximum penetration force * (shank vertical)
68434lb
Maximum penetration depth (standard tip)
85.5in
Pryout Force
146376lb
Overall Beam Width
131.1in
Maximum Penetration Force - Shank Vertical
69112lb
Maximum Penetration - Standard Tip
43.3in
Pry-Out Force - Multi-Shank Ripper with One Tooth
144785lb
Engine Model
Cat® C32B
Displacement
1959in³
Engine Power - Net SAE J1349/ISO 9249 - Forward
861hp
Engine Power - Net SAE J1349/ISO 9249 - Reverse
959hp
Note (1)
*Excludes all fan losses.
Note (2)
Engine ratings apply at 1,600 rpm.
Note (3)
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Pump Type
Variable displacement piston pump
Combined Pump Output - Implement
177gpm
1.0 Forward
2.5mile/h
2.0 Forward
4.4mile/h
3.0 Forward
7mile/h
1.0 Reverse
3mile/h
2.0 Reverse
5.4mile/h
3.0 Reverse
7mile/h
Fuel Tank - Usable Volume
466gal (US)
Cooling System
50.7gal (US)
Engine Crankcase
35.1gal (US)
Powertrain
120gal (US)
Power Train - Refill Volume
109.6gal (US)
Final Drive - Each
10.6gal (US)
Roller Frames - Each
24.8gal (US)
Hydraulic Tank
42.2gal (US)
Hydraulic System Tank and Chassis
64.7gal (US)
Hydraulic System Chassis + Blade and Ripper (Standard)
117.6gal (US)
Hydraulic System Chassis + Blade and Ripper (Carrydozer)
143.4gal (US)
Width - Shoe
28in
Width - Shoe - CD
36in
Shoes/Side
41
Grouser Height
4in
Pitch
12.5in
Ground Clearance*
30.6in
Track Gauge
114in
Length - Track on Ground
175in
Ground Contact Area
9781in²
Ground Contact Area - CD
12605in²
Track Rollers/Side
8
Number of Carrier Rollers
1 per side (optional)
ROPS
Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008
FOPS
Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II
Sound (1)
The exterior sound pressure level for the standard machine (ISO 6396:2008) is 113 dB(A) (sound suppressed).
Sound (2)
The operator equivalent sound pressure level (ISO 6396:2008) is 76 dB(A) (sound suppressed).
Note (1)
The air conditioning system on this machine contains the fluorinated
greenhouse gas refrigerant R134a (Global Warming Potential = 1430).
See the label or instruction manual for identification of the gas.
– If equipped with R-1234yf (Global Warming Potent
-
- Cat Power Train
-
- Cat C32B Engine – Non-certified, equivalent to U.S. EPA Tier 2
- Hydraulic Cooling Fan – Automatic Reversing
-
- Operator Environment
-
- MineStar™ Terrain Display
- Visibility – Dual Camera
- Visibility – Four Cameras, 360 Degree View
- Visibility – Camera – Ripper Tip View
- Seat – Heated, Cooled, Adjustable Lumbar and Bolsters
- Cab Glass – Dual-Pane Laminated Impact Safety
- Cab Glass – High-Pressure Safety (40 psi/275 kPa)
- Cab Access – Powered Ladder
-
- Cat Technology Products
-
- AutoCarry™
- Auto Ripper Control
- Cat Terrain with 3D Blade Control
- Cat Terrain Ready
- Cat Product Link Elite Dual Mode (cellular + satellite)
- Cat Command for Dozing Ready
-
- Undercarriage
-
- Track Links – Heavy Duty XL – Duralink
- Track Shoe – Abrasion Resistant
- Track Shoe – Anti-Packing Round Hole
- Abrasion Rollers and Idlers
- Cold Weather Rollers and Idlers
- Carrier Roller
-
- Hydraulics
-
- Carrydozer Hydraulics
- Dozer Extended Blade Pitch
- Ripper Pin Puller
-
- Electrical
-
- Battery Isolation – Dual Pole
- Lights – LED Premium Package – 13 positions
-
- Service And Maintenance
-
- Sound Reduction Sealed Bottom Guards
- Ground-Level Fluid Fill and Drain
- Ripper Lubrication – Autolube with Ground-Level Fill
- Ripper Lubrication – Grouped
-
- Rear Attachments
-
- Ripper – Single Shank with Pin Puller
- Ripper - Single Shank – Push Block and Retrieval Hitch with Pin Puller
- Ripper - Single Shank – Push Block and Retrieval Hitch with Pin Puller – Heavy
- Ripper – Multi Shank (three shank)
- Ripper – Multi Shank – Heavy (three shank)
- Ripper – Multi Shank Leach Pad with Pin Puller
- Ripper – Multi Shank – Coal (five shank)
- Counterweight – Rear
- Drawbar with Counterweight
-
- Blades
-
- Semi-Universal (27.2 m³/35.6 yd³)
- Universal (34.4 m³/45.0 yd³)
- Carrydozer (43.6 m³/57 yd³)
- Reclamation Universal (42 m³/55 yd³)
- Coal Universal (75 m³/98.0 yd³)
- Coal Universal (65 m³/85.5 yd³)
-
- Other
-
- Fire Suppression Ready
- Fire Suppression Installed
-
- Operator Environment
-
- ROPS/FOPS, Sound-Suppressed Cab
- High-Definition Primary Touchscreen Display
- Visibility – Rearview Mirrors
- Air Conditioner and Heater with Automatic Climate Control
- Seat – Cloth with Air suspension
- Cab Glass – Single-Pane Tinted Safety
- Cab Access – Blade Push Arm Steps and Grab Handle
-
- Cat Technology Products
-
- VIMS
- Automated Blade Assist (ABA)
- Cat Product Link™ Elite (cellular)
-
- Cat Power Train
-
- Cat C32B Engine – U.S. EPA Tier 4 Final/EU Stage V
- High-Performance Single-Plane Cooling Module
- Variable Speed Dual Path Electric Drive
- Tiller Steering – Electronic Control
-
- Undercarriage
-
- Suspension Type Undercarriage
- Sleeve Bearing Track
- Lifetime-Lubricated Rollers and Idlers
- Track Shoes (ES): 710/810/915 mm (28/32/36 in) Width (various configurations)
-
- Hydraulics
-
- Electronically Controlled, Load-Sensing Dozer Lift and Tilt
- Electronically Controlled, Load-Sensing Ripper Lift and Pitch
- Dozer Blade – Dual Tilt
- Electronically Enabled Blade – Quick Drop
-
- Electrical
-
- 24V Electric Start, Dual Starters
- Batteries – 4 × 4,200-Amp Hour, 12V
- Battery Isolation
- Lights – LED – 13 Positions
-
- Service And Maintenance
-
- Ecology Fluid Drains – All Compartments
- Hinged Bottom Guards
- High-Speed Oil Change – Engine and Transmission
- Ground-Level Fast Fuel Fill
- Ground-Level Electrical Service Station
- S·O·SSM Fluid Sampling Ports
- Diagnostic Connector
