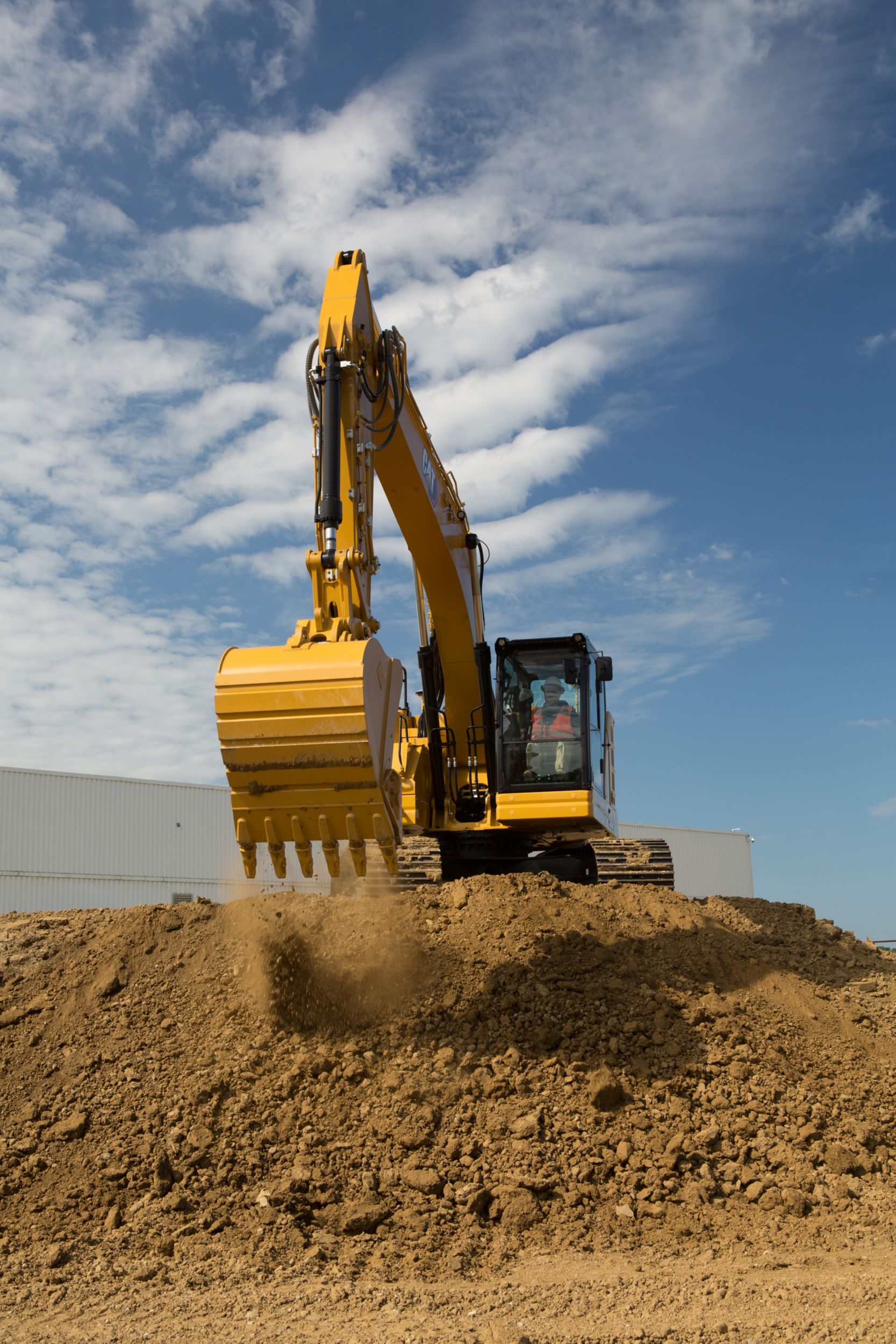

325 Hydraulic Excavator
$1,050 Daily
$2,730 Weekly
$7,420 Monthly
The Cat® 325 Excavator brings premium performance with simple-to-use technologies like Cat Grade with 2D, Grade Assist, Lift Assist and Payload – all standard equipment from the factory to boost your operator efficiencies up to 45%. Combine these features with a compact radius design for working in tight spaces, a new cab, longer maintenance intervals that lower your maintenance costs up to 20%, and a power system that reduces fuel consumption by up to 25% and you have a low-cost-per-unit-of-production excavator that’s perfect for medium- to heavy-duty applications. Optional blade allows for faster job site cleaning and leveling as well as better lifting capabilities. Optional heavy counterweight allows you to maximize the performance of this compact radius machine.
-
Engine
-
- Net Power - ISO 9249
- 172HP
- Engine Model
- Cat C4.4
- Engine Power - ISO 14396
- 174HP
- Bore
- 4in
- Stroke
- 5in
- Displacement
- 269in³
-
Weights
-
- Operating Weight
- 62800lb
-
Working Ranges & Forces
-
- Maximum Digging Depth
- 22ft
- Boom
- Reach 5.7 m (18'8")
- Stick
- Reach 2.9 m (9'6")
- Bucket
- HD 1.19 m³ (1.56 yd³)
- Maximum Reach at Ground Level
- 32.1ft
- Maximum Cutting Height
- 36ft
- Maximum Loading Height
- 25.11ft
- Minimum Loading Height
- 9.9ft
- Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
- 21.5ft
- Maximum Vertical Wall Digging Depth
- 16ft
- Bucket Digging Force - ISO
- 33720lbf
- Stick Digging Force - ISO
- 23830lbf
-
Hydraulic System
-
- Main System - Maximum Flow - Implement
- 429 L/min (× 2 pumps)/113 gal/min (× 2 pumps)
- Maximum Pressure - Equipment - Normal
- 5075psi
- Maximum Pressure - Equipment - Lift Mode
- 5510psi
- Maximum Pressure - Travel
- 5075psi
- Maximum Pressure - Swing
- 3988psi
-
Swing Mechanism
-
- Swing Speed
- 11.12r/min
- Maximum Swing Torque
- 60300ft·lbf
-
Machine Weight
-
- Operating Weight - 600 mm (24”) Triple Grouser Shoes
- 49400lb
- Note (1)
- Standard undercarriage, Reach boom, R2.9 m (9'6") stick, HD 0.9 m³ (1.18 yd³) bucket, 600 mm (24") triple grouser shoes, and 4900 kg (10,800 lb) counterweight.
- Operating Weight - 790 mm (31") Triple Grouser Shoes
- 62800lb
- Note (2)
- Long undercarriage, Reach boom, R2.9 m (9'6") stick, HD 1.19 m³ (1.56 yd³) bucket, 790 mm (31") HD triple grouser shoes and 8300 kg (18,300 lb) counterweight.
-
Service Refill Capacities
-
- Fuel Tank Capacity
- 82.7gal (US)
- Cooling System
- 3.1gal (US)
- Engine Oil
- 4gal (US)
- Swing Drive
- 3.2gal (US)
- Final Drive - Each
- 1.1gal (US)
- Hydraulic System - Including Tank
- 60.8gal (US)
- Hydraulic Tank
- 29.4gal (US)
- DEF Tank
- 6.9gal (US)
-
Dimensions
-
- Boom
- Reach 5.7 m (18'8")
- Stick
- Reach 2.9 m (9'6")
- Bucket
- HD 1.19 m³ (1.56 yd³)
- Shipping Height - Top of Cab
- 10.1ft
- Handrail Height
- 10.5ft
- Shipping Length
- 29.2ft
- Tail Swing Radius
- 5.11ft
- Track Length
- 14.7ft
- Length to Center of Rollers
- 12ft
- Ground Clearance
- 1.5ft
- Track Gauge
- 7.1ft
- Transport Width - 600 mm (24”) Shoes
- 9.8ft
- Transport Width - 700 mm (28") Shoes
- 10.1ft
- Transport Width - 790 mm (31 in) Shoes
- 10.4ft
- Counterweight Clearance
- 3.3ft
-
Sustainability
-
- Recyclability
- 98%
Standard Equipment:
-
Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
Cab
-
- ROPS
- Mechanical-suspension seat (Comfort only)
- Heated air-suspension seat (Deluxe only)
- Heated and ventilated air-suspension seat (Premium only)
- High-resolution 203 mm (8 in) LCD touchscreen monitor (Comfort only)
- High-resolution 254 mm (10 in) LCD touchscreen monitor (Deluxe, Premium only)
-
Cat Technologies
-
- Cat Product Link™
- Remote Flash
- Remote Troubleshoot
- Cat Grade with 2D
- Cat Assist
- Cat Payload
- 2D E-Fence
-
Electrical System
-
- Two 1,000 CCA maintenance free batteries
- Programmable time-delay LED working lights
- LED chassis light, left-hand/right-hand boom lights, cab lights
-
Engine
-
- Three selectable modes: Power, Smart, Eco
- One-touch low idle with auto engine speed control
- Auto engine idle shutdown
- 50° C (122° F) high-ambient cooling capacity without de-rate
- –18° C (0° F) cold start capability
- Double element air filter with integrated precleaner
- Reversing electric cooling fans
- Biodiesel capability up to B20
-
Hydraulic System
-
- Boom and stick regeneration circuits
- Auto hydraulic warm up
- Auto two-speed travel
- Boom and stick drift reduction valve
- Auto dig boost
-
Service And Maintenance
-
- Sampling ports for Scheduled Oil Sampling (S·O·S)
- Ground-level and platform-level engine oil dipsticks
-
Safety And Security
-
- Rearview camera
- Right-side-view camera
- Lift assist
- Ground-level engine shutoff switch
- Right-hand handrail and hand hold
- Signaling/warning horn
-
Undercarriage And Structures
-
- Long undercarriage
- Tie-down points on base frame
Optional Equipment:
-
Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
Booms And Sticks
-
- 5.7 m (18'8") Reach boom
- 5.7 m (18'8") HD Reach boom
- 2.8 m + 3.3 m (9'2" + 10'10") VA boom
- 2.9 m (9'6") Reach stick
- 2.9 m (9'6") HD Reach stick
- 2.9 m (9'6") Thumb Ready stick
-
Cab
-
- Cat Stick Steer
- Auxiliary relay
-
Cat Technologies
-
- Cat Grade with Advanced 2D
- Cat Grade with 3D single GNSS
- Cat Grade with 3D dual GNSS
-
Electrical System
-
- 360° lighting
-
Engine
-
- –32° C (–25° F) cold start capability
-
Hydraulic System
-
- Boom and stick lowering check valves
- Hammer return filter circuit
- Combined Tool Control (two pump, one/two way high-pressure flow)
- Medium-pressure circuit
- Quick coupler circuit
-
Safety And Security
-
- Cat Detect - People Detection
- 360° visibility (requires 254 mm [10 in] monitor)
- Swing alarm
- Cat Command remote control
-
Service And Maintenance
-
- Electric refueling pump with auto shut off
- Integrated vehicle health management system
-
Undercarriage And Structures
-
- Standard undercarriage (available only in Japan)
- 600 mm (24") triple grouser shoes
- 600 mm (24") HD triple grouser shoes
- 700 mm (28") triple grouser shoes
- 700 mm (28") HD triple grouser shoes
- 790 mm (31") triple grouser shoes
- 790 mm (31") HD triple grouser shoes
- 8300 kg (18,300 lb) counterweight
- 6700 kg (14,771 lb) counterweight
- 4900 kg (10,800 lb) counterweight
- 2980 mm (9'9") blade
- 3170 mm (10'5") blade
