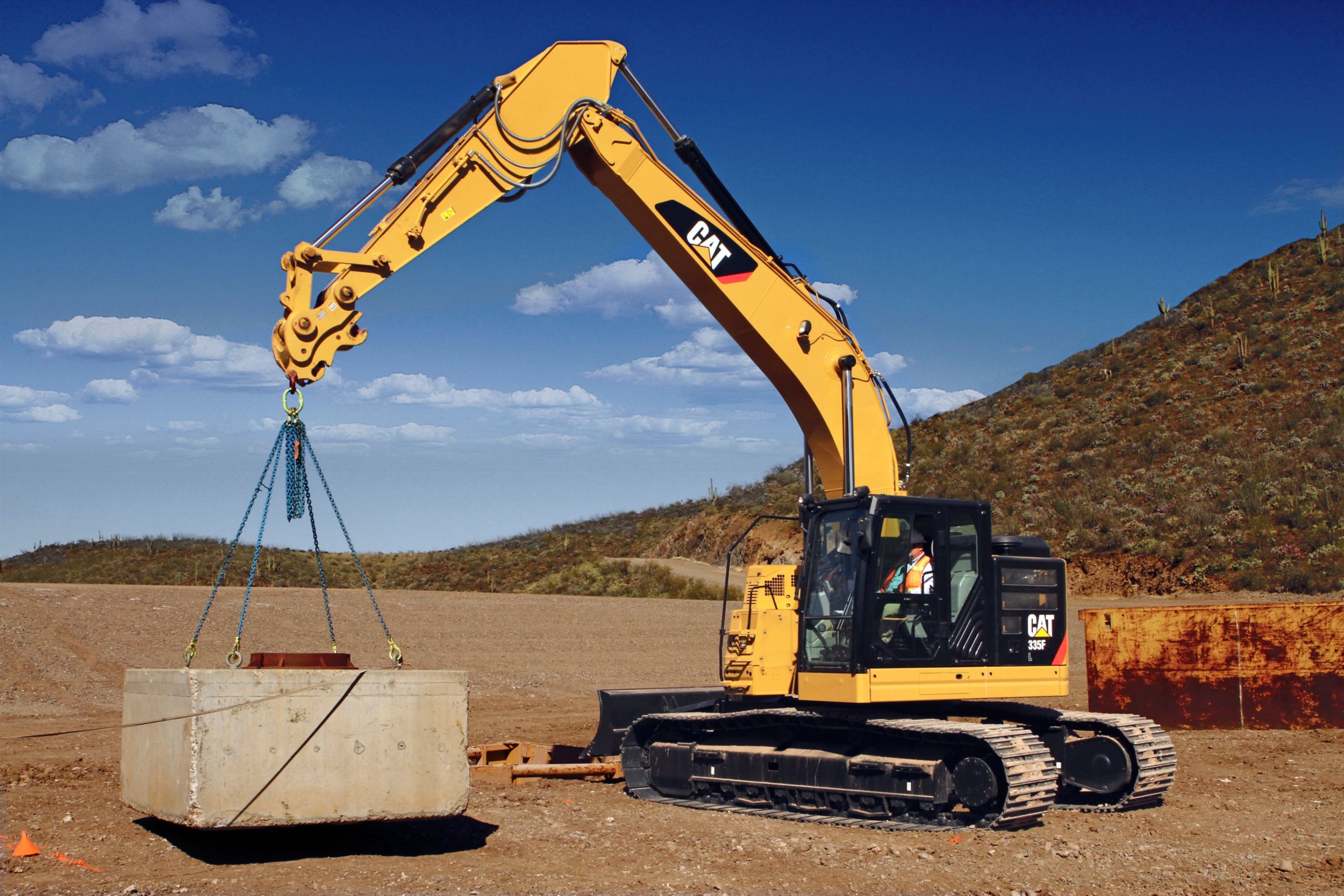

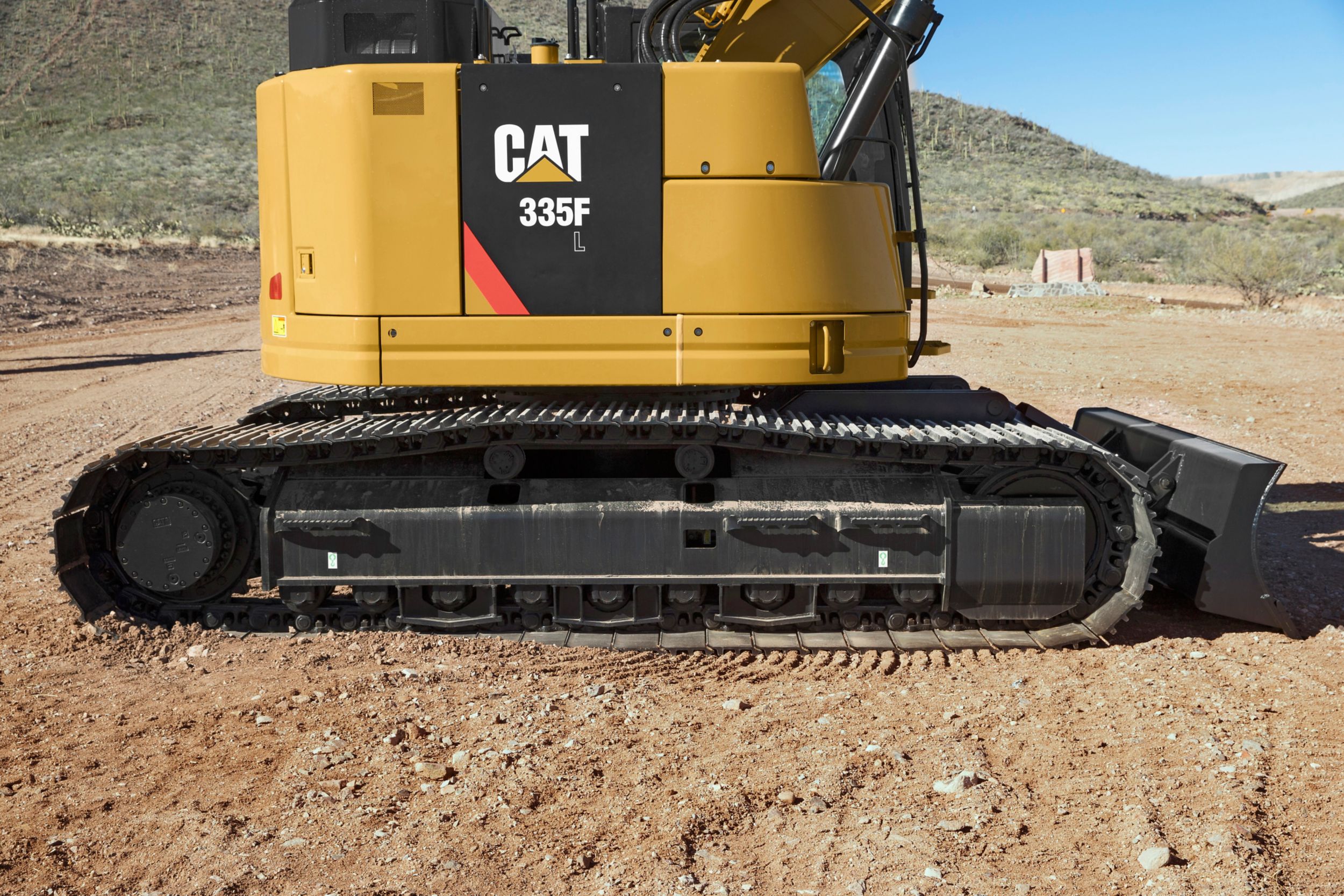

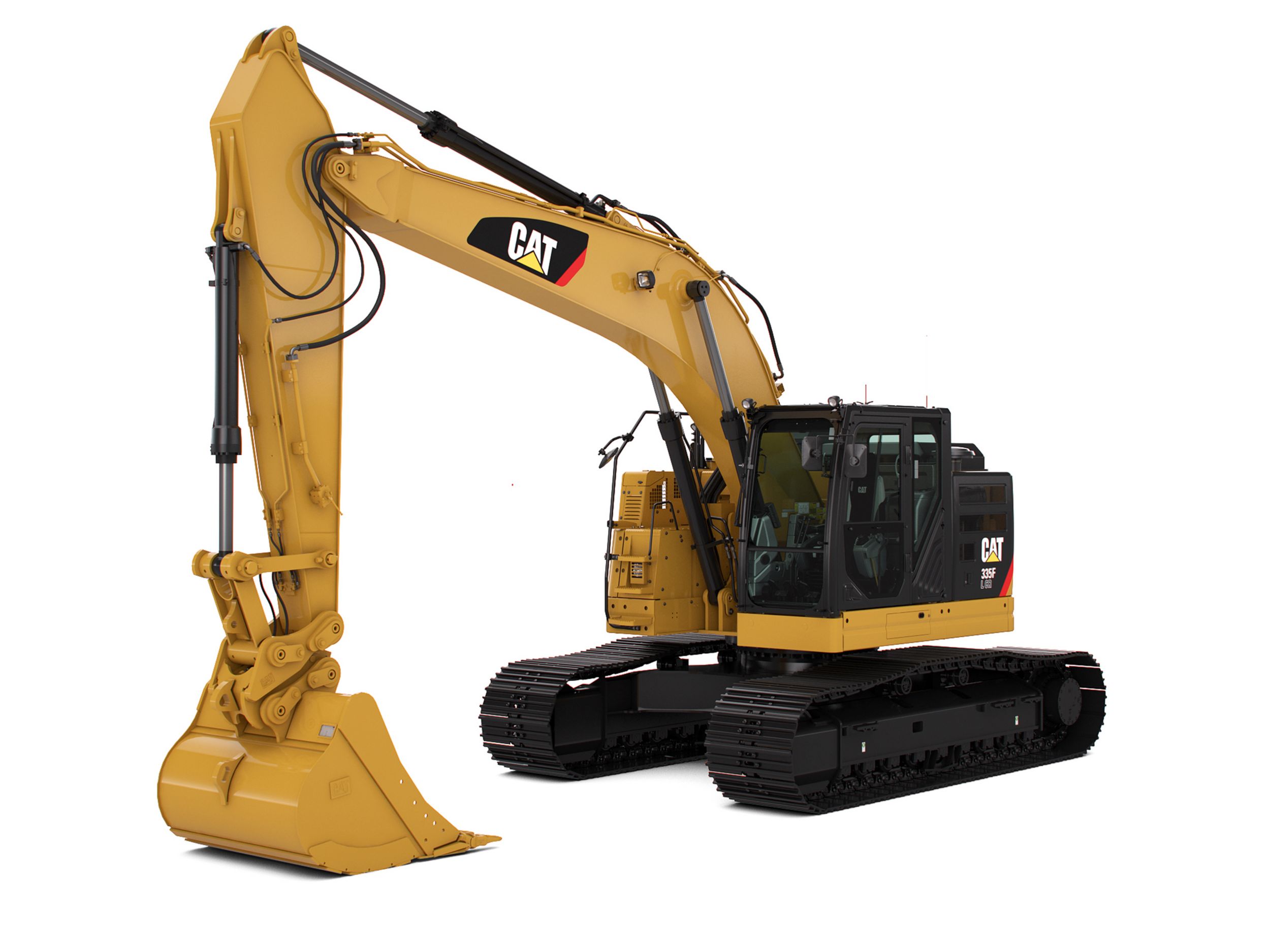

335F L Hydraulic Excavator
The Cat® 335F L provides excellent performance and efficiency and is capable of working in the most confined spaces whatever the job. The type of up-close, space-restricted work you can do with such a unique, heavy-duty machine is nearly unlimited.
Net Power - ISO 9249
200HP
Engine Model
Cat C7.1
Engine Power - ISO 14396
204HP
Bore
4.13in
Stroke
5.31in
Displacement
428in³
Operating Weight
83820lb
Maximum Digging Depth
22.93ft
Boom
Reach Boom 6.15 m
Stick
R3.2CB2 (3.2 m)
Bucket
CB1350HD
Maximum Reach at Ground Level
34.91ft
Maximum Cutting Height
36.58ft
Maximum Loading Height
26.15ft
Minimum Loading Height
9.58ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
22.41ft
Maximum Vertical Wall Digging Depth
18.93ft
Bucket Digging Force - ISO
40241lbf
Stick Digging Force - ISO
28326lbf
Main System - Maximum Flow
494 l/min (130.5 gal/min)
Maximum Pressure - Equipment
5076psi
Maximum Pressure - Equipment - Lift Mode
5511psi
Maximum Pressure - Travel
5366psi
Maximum Pressure - Swing
3974psi
Swing Speed
9.9r/min
Maximum Swing Torque
60628ft·lbf
Fuel Tank Capacity
101.7gal (US)
Cooling System
7.9gal (US)
Engine Oil
6.3gal (US)
Swing Drive - Each
2.4gal (US)
Final Drive - Each
2.1gal (US)
Hydraulic System - Including Tank
76.6gal (US)
Hydraulic Tank
40.7gal (US)
DEF Tank
6.1gal (US)
Boom
Reach Boom 6.15 m
Stick
R3.2CB2 (3.2 m)
Bucket
CB1350HD
Shipping Height - Top of Cab
11.61ft
Shipping Length
32.22ft
Tail Swing Radius
6.23ft
Counterweight Clearance
3.94ft
Ground Clearance
1.57ft
Track Length
16.47ft
Length to Center of Rollers
13.25ft
Track Gauge
8.5ft
Transport Width
11.29ft
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Cab
-
- Air-adjustable seat with heat (Deluxe only)
-
- Hydraulic System
-
- Boom and stick lowering check valves
- Hammer return filter circuit
- Combined flow/high-pressure auxiliary circuit
- Medium-pressure circuit
- Quick coupler circuit for Cat Pin Grabber
-
- Undercarriage And Structures
-
- 600 mm (24") triple grouser shoes
- 700 mm (28") triple grouser shoes
- 850 mm (33") triple grouser shoes
-
- Electrical System
-
- Premium surround lighting package as Optional
-
- Safety And Security
-
- Right-hand-side camera
- 360° visibility
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Cab
-
- ROPS, sound suppression
- Mechanically adjustable seat
- High-resolution 178 mm (7 in) LCD touchscreen monitor
-
- Cat Technology
-
- Cat Product Link
-
- Engine
-
- Cat C7.1 diesel engine
- 4600m (15,000 ft) altitude capability
- Auto engine idle shutdown
- Auto engine speed control
- 52°C (126°F) ambient cooling capacity
- Biodiesel capability up to B20
-
- Hydraulic System
-
- Boom and stick regeneration circuits
- Auto two-speed travel
- Reverse swing damping valve
- Auto two-speed travel
- High-performance hydraulic return filter
-
- Boom And Sticks
-
- 6.15 m (20'2") reach boom, 3.2 m (10'6") stick
-
- Undercarriage And Structures
-
- Tie-down points on base frame
-
- Electrical System
-
- Maintenance-free battery
- Programmable time-delay LED working lights
- LED chassis light, left-hand/right-hand boom lights, cab lights
-

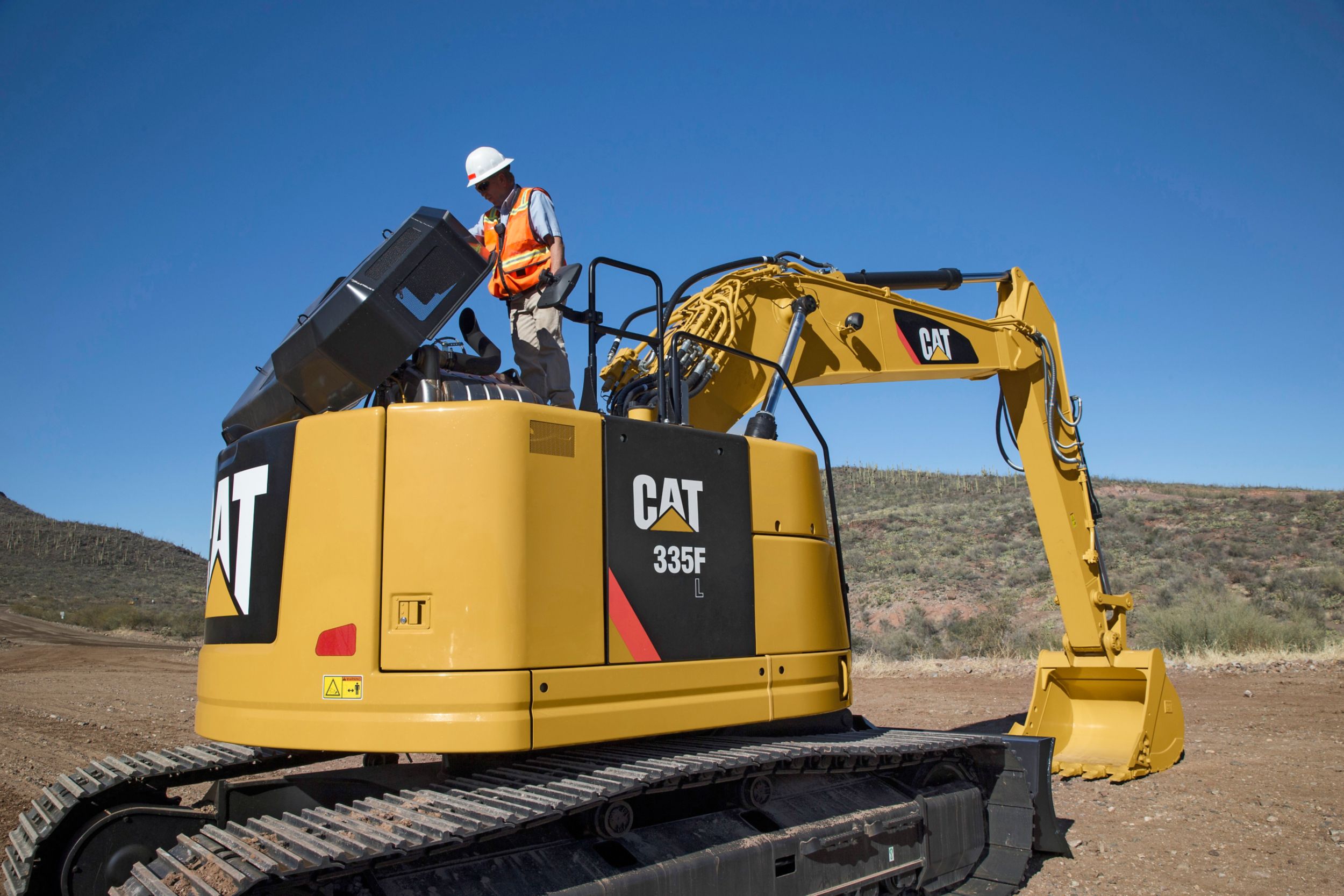

- Service And Maintenance
-
- Sampling ports for Scheduled Oil Sampling (S·O·S)
- Ground-level and platform-level engine oil dipsticks
-
- Safety And Security
-
- Rear and right-hand-sideview cameras
- Signaling/warning horn
- Right-hand mirror
- Ground-level engine shutoff switch
- Right-hand handrail and hand hold
- Signaling/warning horn
