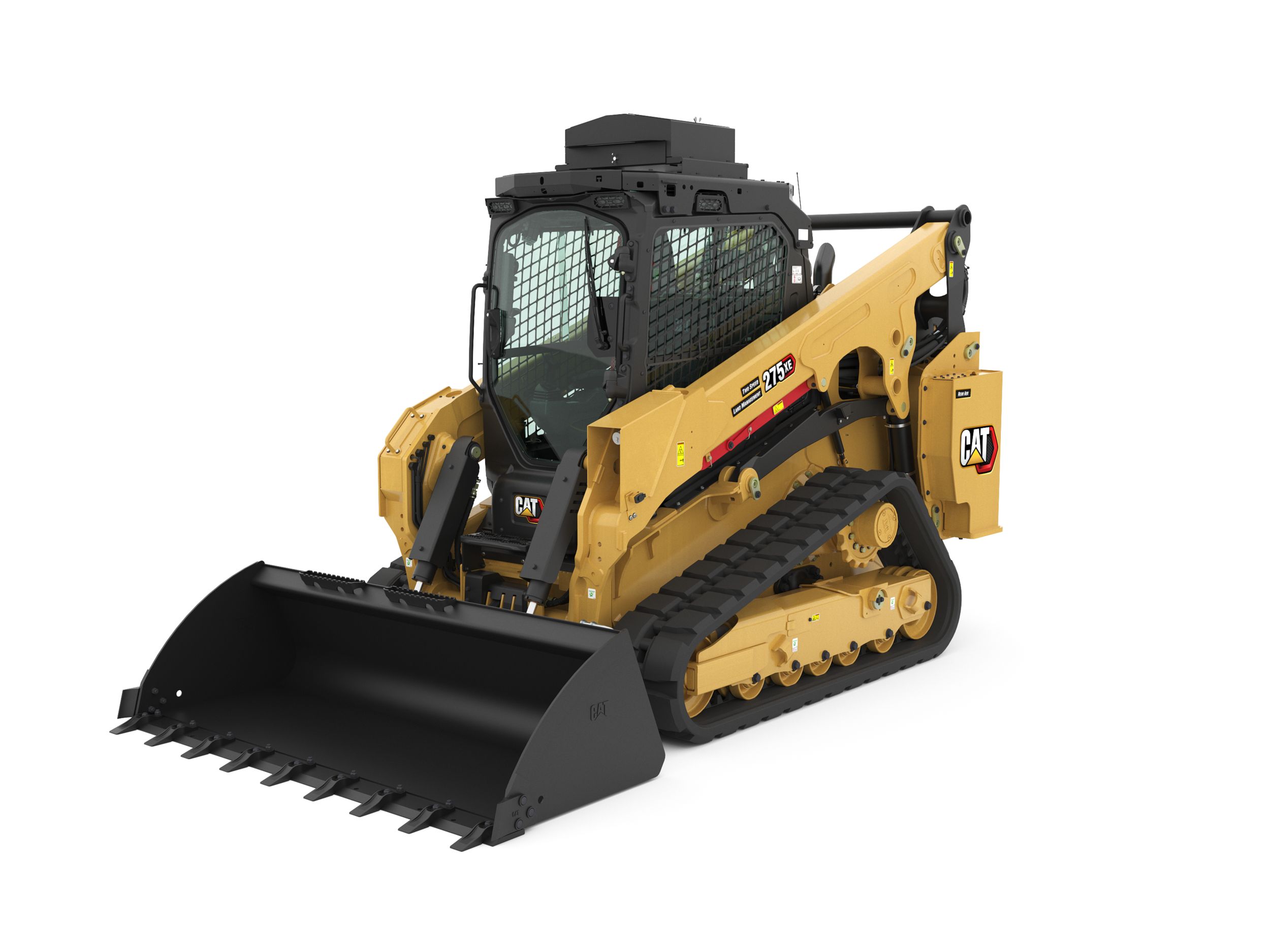

275 XE Compact Track Loader
The Cat® 275 XE Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard equalizer bar (E-bar) undercarriage system and two speed travel provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.
Gross Power - SAE J1995
122hp
Bore
4.7in
Displacement
221in²
Net Power - ISO 9249
120hp
Net Power - SAE 1349
82hp
Peak Torque at 1,360 rpm SAE J1995
370lb/ft
Peak Torque - 1,500 rpm - SAE J1995
406lb/ft
Stroke
3.9in
Engine Model
Cat® C3.6 TA (turbocharged after-cooled)
Rated Operating Capacities - 35% Tipping Load
4205lb
Breakout Force - Lift Cylinder
6422lb
Breakout Force - Tilt Cylinder
9963lb
Ground Contact Area - With 450 mm/17.7 in Track
2808in²
Ground Pressure - With 450 mm/17.7 in Track
4.5psi
Rated Operating Capacities - 50% Tipping Load
4033lb
Rated Operating Capacity with Optional Counterweight
2996lb
Tipping Load
12015lb
Operating Weight
12705lb
Counterweight Adds to Operating Weight
428lb
Counterweight Adds to Operating Weight - ROC (35%)
279lb
Counterweight Adds to Operating Weight - Tip Load
796lb
Enclosed Cab Adds to Operating Weight
218lb
Enclosed Cab Adds to Operating Weight - ROC (35%)
105lb
Enclosed Cab Adds to Operating Weight - Tip Load
214lb
Note
* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed (variable), 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idler, XE (H6) hydraulics with rear a
Bucket Pin Height - Carry Position
8.1in
Bucket Pin Height - Maximum Lift
134.4in
Bucket Pin Reach - Maximum Lift
16.3in
Clearance at Maximum Lift and Dump
106.1in
Departure Angle
29.5°
Ground Clearance
11in
Height - Top of Cab
87.8in
Length - Track on Ground
72.3in
Length - With Bucket on Ground
152.8in
Length - Without Bucket
128in
Maximum Overall Height
165.1in
Maximum Reach - With Arms Parallel to Ground
46.1in
Overall Length - Track
92.2in
Rack Back Angle - Maximum Height
86.7°
Reach at Maximum Lift/Dump
32in
Roll Back Angle
27.3°
Turning Radius from Center - Bucket (racked)
91.3in
Turning Radius from Center - Coupler
60.3in
Turning Radius from Center - Machine Rear
76in
Vehicle Width (450 mm/17.7 in tracks)
77.8in
Maximum Dump Angle
44.7°
FOPS
ISO 3449:2005 Level I
ROPS
ISO 3471:2008
FOPS Level II
ISO 3449:2005 Level II (Optional)
Cooling System
4.6gal (US)
Engine Crankcase
2.4gal (US)
Fuel Tank
36.9gal (US)
Hydraulic System
10.8gal (US)
Hydraulic Tank
6.9gal (US)
Diesel Exhaust Fluid (DEF) Tank
2.9gal (US)
Travel Speed - Forward or Reverse - One Speed
5.2mile/h
Travel Speed - Forward or Reverse - Two Speed
7.8mile/h
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure
4496psi
Hydraulic Flow - High Flow - Loader Hydraulic Flow
34gal/min
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow*
40gal/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure
3500psi
Hydraulic Flow - XE - Hydraulic Power (calculated)
103.9hp
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)
80.7hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow
23gal/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure
4061psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
46.4hp
Hydraulic Flow - Standard - Loader Hydraulic Flow
23gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure
3500psi
Vehicle Width (400 mm/15.7 in tracks)
75.8in
- External Counterweights
- Beacon, LED
- Engine Block Heater – 120V
- Oil, Hydraulic, Cold Operation
- 4-point machine lifting eyes
- Paint, Custom
- Speed Sensitive Ride Control
- Bluetooth Key Security
- Attachment Hose Guide
- Corrosion Inhibitor Coating
-
- Standard Equipment
-
- Quick Coupler: Manual or Hydraulic
- High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
- Steel Imbed Rubber Track – 450 mm (17.7 in) bar tread, 450 mm (17.7 in) block tread
- Dual Flange Front Idler/Single Flange Rear Idler or Triple Flange Front/Rear Idlers
-
- Performance Packages
-
- Performance Package HP1: Standard Flow Hydraulics
- Performance Package HP3: High Flow XPS Hydraulics
-
- Comfort Packages
-
- Open canopy: Cup Holder, Cell Phone Pocket, choice of vinyl Seat (Mechanical Suspension, High Back/Heated/Air Ride Seat)
- Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)
-
- Technology Packages
-
- T2 – Standard Display, Standard Joysticks, traditional Key Start switch, and Rear-view camera.
- T4 – Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
- T5 – T4 + 2 additional side view cameras.
-
- Radio
-
- Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
- Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm (0.13 in) AUX input, and BT microphone. Only for use with enclosed cab. Availability varies by country.
- Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm (0.13 in) AUX input, and BT microphone. Only for use with enclosed cab. Availability varies by country.
-
- Product Link™
-
- Product Link™ Basic series PL243
- Product Link Elite series PLE643
-
- Cooling Fan
-
- On-demand, variable speed hydraulic cooling fan
- On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation
-
- Guarding And Sealing Packages
-
- HD0 – base guarding and sealing (engine air inlet rain cap, front cab to-frame sealing, and hydraulic fill access door)
- HD1– intermediate guarding and sealing† (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding.) †Some equipment varies by region.
- HD2 – most comprehensive guarding and sealing† (HD1 + turbo guard, exhaust stack wrap, DPF wrap, quick disconnect guarding, fully enclosed drive line guarding, under step hydraulic lines guard cover, engine air inlet pre-cleaner.)
-
- Electrical
-
- Work Tool Electrical Harness
- Heavy duty battery
- Battery disconnect with lockout feature
- 12-volt Electrical System
- 85 Ampere Alternator
- LED Work Lights
- Auto Reverse Lights
- Switch Backlighting
- Interior LED Dome Light
- Backup Alarm
- Electrical Outlet, Beacon
- Exterior Courtesy Lighting
- Automatic Work light notification flash when parking brake is released
-
- Operator Environment
-
- Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (× 32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
- Gauges: Fuel Level, Hour Meter, Hydraulic Temperature, Hour Meter, Battery Voltage, Tachometer
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking
- Brake Engages
- ROPS Cab, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Floor Mat
- Headliner
- Interior Rearview Mirror
- Horn
- Hand (Dial) Throttle, Electronic
- Seat Mounted Joystick Controls
- Cell Phone Storage Pocket
- Cup Holder
- 12-volt power port
- Foot Throttle
-
- Hydraulics
-
- Selectable control pattern – ISO or H
- Electro/hydraulic implement control
- Electro/hydraulic hydrostatic transmission control
- Speed sensor guarding
- Heavy duty flat faced quick disconnects with integrated pressure release lever
- Hydraulic oil level sight gauge
-
- Power Train
-
- Cat C3.6TA turbocharged, after-cooled diesel engine, meeting U.S. EPA Tier 4 Final and EU Stage V Emission Standards: Glow plugs starting aid Liquid cooled, direct injection
- Extended life antifreeze (–37° C, –34° F)
- Air cleaner, dual element, radial seal
- Scheduled Oil Sampling (S·O·SSM) Valve, Hydraulic Oil
- Ecology drain – coolant
- Radiator coolant level sight gauge
- Radiator expansion bottle
- Filter, hydraulic supply, cartridge type
- Filter, hydraulic return, cartridge type
- Filter, canister type, engine oil
- Filter, canister type, fuel and water separator
- Radiator/hydraulic oil
- Cooler (side-by-side)
- Spring applied, hydraulically released, parking brakes
- Hydrostatic transmission
- Lockable fuel cap
- Hydraulic demand cooling fan
- Auto engine idle
-
- Undercarriage
-
- Torsion Suspension (4 independent torsion axles)
- Two speed travel
- Integrated tie downs on track frame (4)
-
- Frame
-
- Machine tie down points (9)
- Removable panels for machine frame cleanout
- Support, lift arm
- Steel rear and front bumpers, welded
- Fuel fill, machine right hand side
-
- Other
-
- Auxiliary Hydraulics, Continuous Flow
- Telematics, Product Link, Cellular
- Steel engine door with replaceable louvers
- Engine door – lockable
- Work tool attachment coupler
- Cat ToughGuardTM hose
