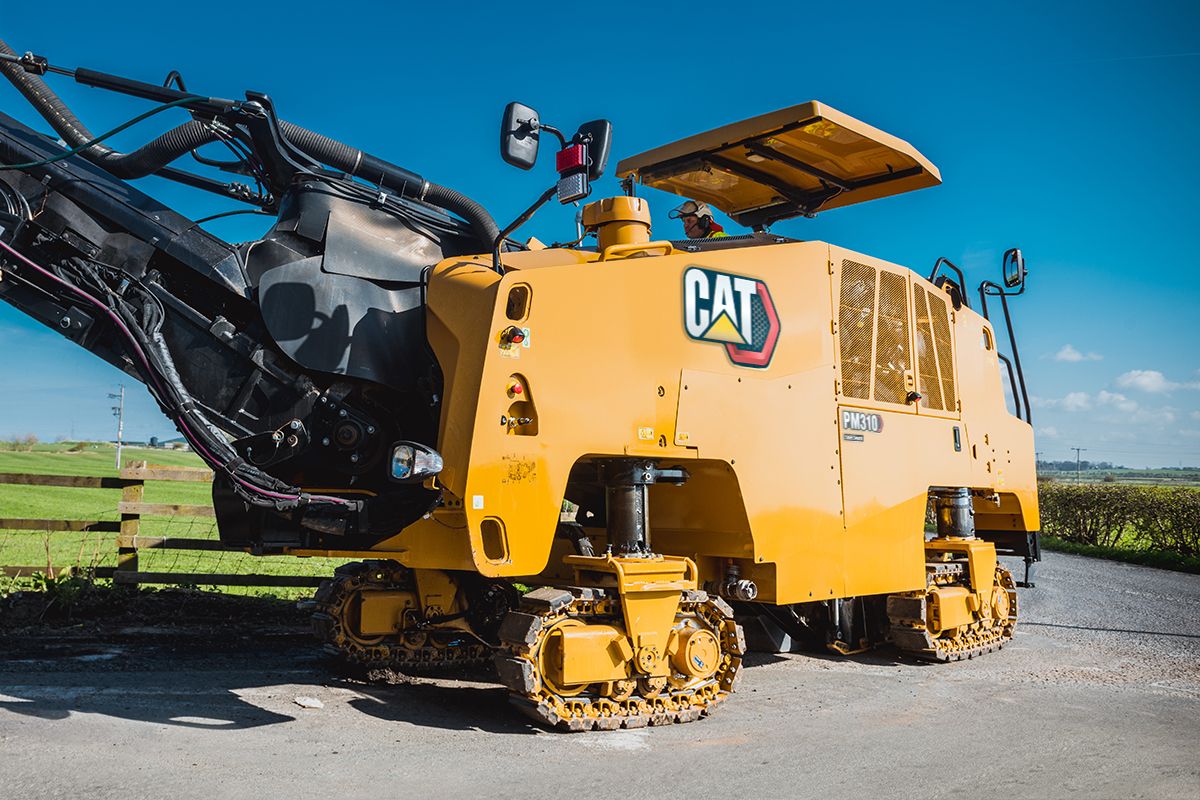

PM310 Track Undercarriage Cold Planer

PM310 Track Undercarriage Cold Planer

The PM310 is an efficient, highly maneuverable milling machine with a cutting width of 1000 mm (39.4 in) that performs controlled full-depth removal of asphalt and concrete pavements in a single pass.

Cutting System
Milling Width
39.4in
Maximum Milling Depth
13in
Rotor Speeds
97 / 109 / 121 rpm
Number of Bits
91
Power Train
Rated Power
336.6HP
Engine
C9.3
Maximum Travel Speed
3.4mile/h
Maximum Milling Speed
108ft/min
Weights
Operating Weight
48016lb
Transport Weight
44463lb
Dimensions
Operating Length - Conveyor Up
36.45ft
Operating Width
8.33ft
Height - Canopy
12.3ft
Maximum Truck Clearance
15.42ft
Minimum Right Cutting Radius
6.3ft
Minimum Left Cutting Radius
13.58ft
Conveyor Swing
60 degrees from center
Transport Length
30.58ft
Transport Width
8.33ft
Transport Height
9.84ft
Service Refill Capacities
Water Spray System Tank
332.9gal (US)
Hydraulic Tank
15.6gal (US)
Diesel Exhaust Fluid (DEF) Tank
5.8gal (US)
Engine Oil
7.9gal (US)
Cooling System
16.4gal (US)
Fuel Tank
158.5gal (US)

Standard Equipment:

Operator Environment
  • Sliding operator station
  • Suspension seat
  • Ground control keypad
  • Single high-resolution LCD touchscreen display
  • 12-volt power receptacle

Cat Connect Technology
  • Remote Troubleshoot capability
  • Cat Product Link
  • Cat GRADE

Conveyor
  • Material removal boost feature

Rotor System
  • Automatic plunge-cut
  • Automatic transition feature
  • Obstacle jump
  • Three cutting speeds
  • System K Rotor - Standard (15 mm)

Powertrain
  • Auto engine idle control
  • High capacity cooling system
  • Automatic load control
  • Wheel undercarriage

Hydraulic System
  • Traction control

Service And Maintenance
  • Ports for Scheduled Oil Sampling (S·O·S℠)
  • Platform-level engine oil dipsticks
  • 1260 L (333 gal) onboard water tank
  • Side water fill valve
  • Water spray system

Safety And Security
  • Platform handrails
  • Signaling/warning horn
  • Halogen work lighting


Optional Equipment:

Operator Environment
  • Additional high-resolution LCD touchscreen display
  • Powered canopy
  • Windscreens
  • Remote camera with cut edge guidance

Cat Connect Technology
  • Sonic sensor (averaging or string line)
  • Ground level grade controls

Conveyor
  • Dust abatement system
  • Hydraulic folding conveyor
  • Remote camera (loading conveyor)

Rotor System
  • System K Rotor - Course (18 mm)
  • System K Rotor - Fine (8 mm)
  • Diamond bits
  • Pneumatic bit removal tool
  • Tool holder extractor
  • Rotor turning device
  • Ballast kit

Powertrain
  • Track undercarriage
  • CE certificate

Service And Maintenance
  • Air compressor
  • Accessory drive system
  • High pressure washdown
  • Low pressure washdown
  • Additional water spray system
  • Remote Flash

Safety And Security
  • LED work lighting (fixed, pole mounted, magnetic)
  • Warning beacon (fixed)
  • Truck signal lights
  • Roading Lights
  • Remote cameras (rear, front, cutting edges)
