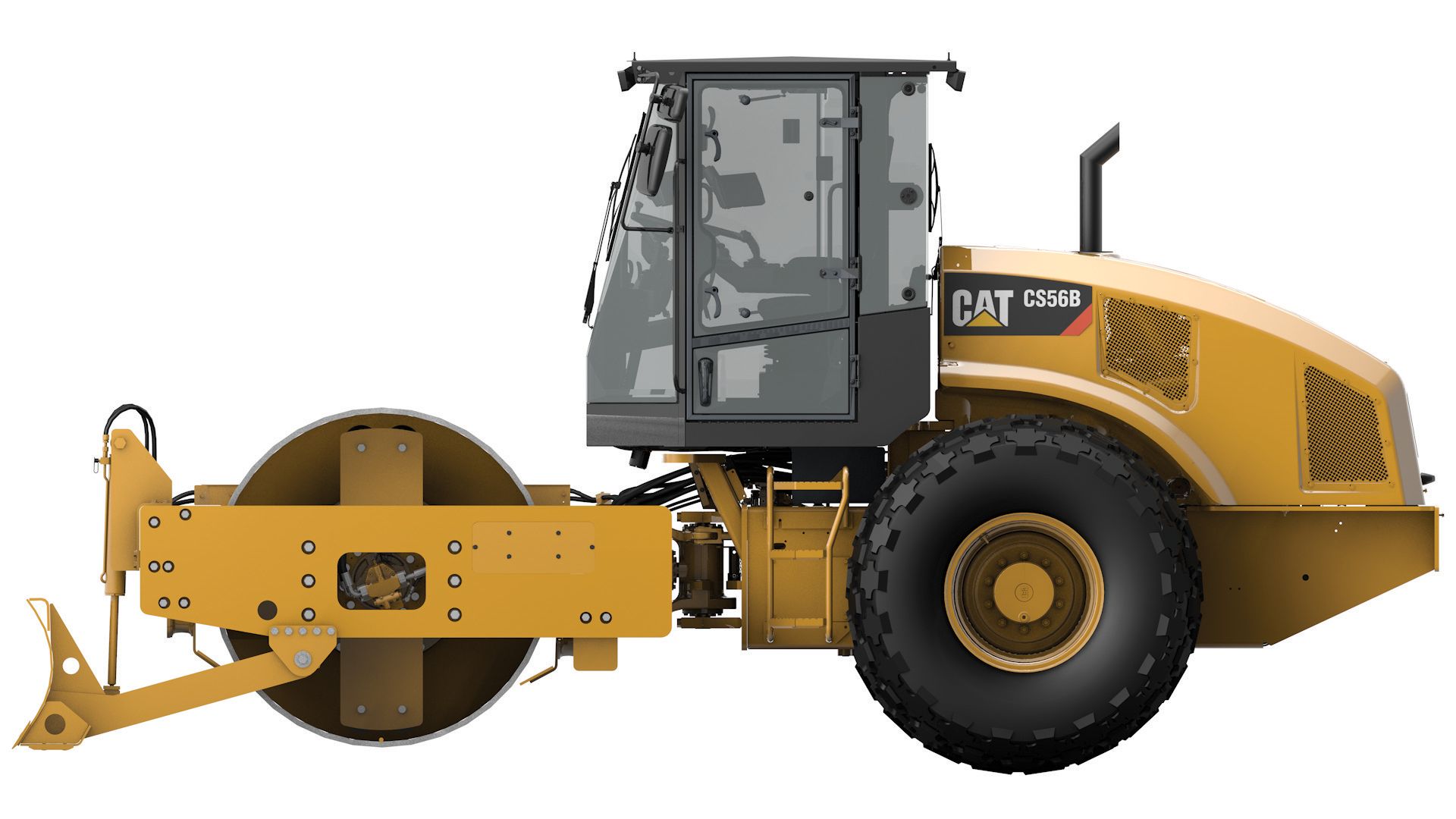

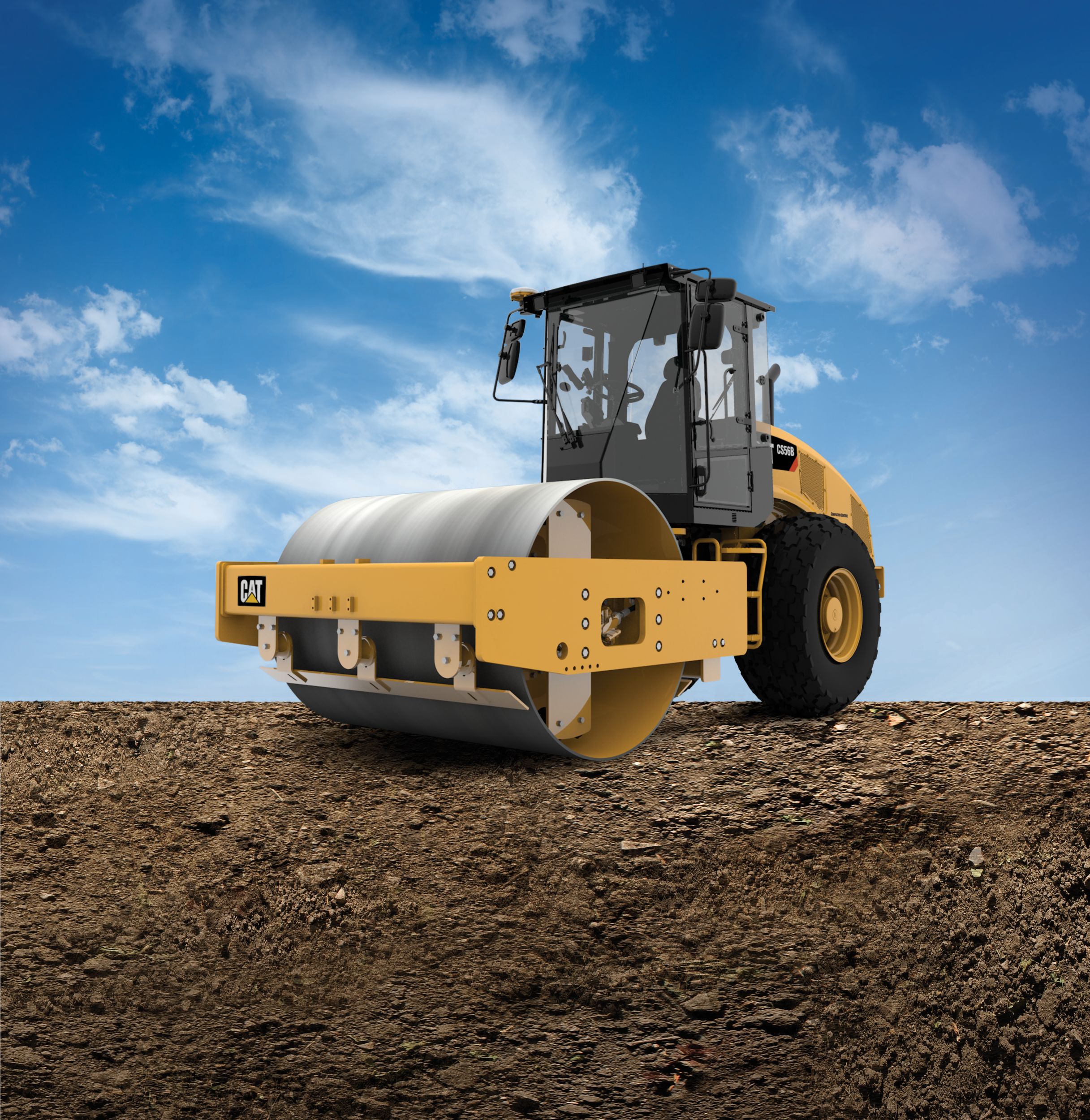

CS56B Vibratory Soil Compactor

CS56B Vibratory Soil Compactor

$770 Daily

$1,990 Weekly

$5,410 Monthly

Powered by the 117 kW (156.9 hp) Cat® C4.4 engine, the CS56B provides exceptional performance for granular soil compaction applications.

Weights
Operating Weight - With Cab
25346lb
Weight - Drum with ROPS/FOPS
13788lb
Weight - Drum with Cab
13990lb
Operating Specifications
Compaction Width
84in
Turning Radius - Inside Drum Edge
12.08ft
Ground Clearance
17.4in
Static Linear Load - With Cab
166.5lb/in
Static Linear Load - With ROPS/FOPS
164.1lb/in
Travel Speed - Maximum
7mile/h
Engine
Gross Power
157HP
Engine Model
Cat C4.4
Stroke
5in
Bore
4.1in
Dimensions
Drum Diameter
60.4in
Optional Blade Height
27.1in
Drum Width
84in
Overall Width
7.58ft
Wheel Base
9.58ft
Overall Width - With Blade Option
8.25ft
Overall Length
19.25ft
Overall Length - With Blade Option
21ft
Height - With ROPS/FOPS or Cab
10.25ft
Vibratory System
Centrifugal Force - Minimum
31670lb
Nominal Amplitude - Low
0.039in
Centrifugal Force - Maximum
67600lb
Variable Frequency Option Range
23.3 - 30.5 Hz (1400-1830 vpm)
Vibratory Frequency - Standard
30.5 Hz (1830 vpm)
Nominal Amplitude - High
0.083in
Tires
Tires
23.1 x 26
Service Refill Capacities
Fuel Tank Capacity
64gal (US)

Standard Equipment:

Operator Environment
  • ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
  • Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
  • Adjustable Tilting Steering Column with Integrated Cup Holders
  • Rear Vision Camera System
  • Seat Belt
  • 12-volt Power Outlet
  • Horn, Backup Alarm

Vibratory System
  • Smooth Drum
  • Dual Amplitude, Single Frequency
  • Pod-Style Eccentric Weight Housings
  • Auto-vibe Function
  • Front Adjustable Steel Scraper
  • Universal Bumper

Power Train
  • Cat C4.4B Engine
  • Air Cleaner, Dual Element
  • Two-Speed Throttle Switch, Eco-mode and Automatic Speed Control
  • Dual Propel Pumps; One for Drum Drive, One for Rear Axle
  • Fuel Filter, Water Separator, Priming Pump, Water Indicator
  • Tilting Radiator/Hydraulic Oil Cooler
  • Dual Braking System
  • Two-speed Hydrostatic Transmission

Electrical
  • 24 volt Electrical System
  • 100 ampere Alternator
  • 750 Cold-cranking Amps Battery Capacity

Other
  • Product Link
  • Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
  • SOS℠ Sampling Valves: Engine Oil, Hydraulic Oil and Coolant


Optional Equipment:

Operator Environment
  • ROPS/FOPS Cab with Climate Control
  • Sun Visor

Vibratory System
  • Padfoot Shell Kit (oval or square pads available)
  • Leveling Blade
  • Variable Frequency
  • Dual Adjustable Steel Scrapers
  • Scraper Shell Kit Ready
  • Recording Module for Vibration Frequency

Power Train
  • Transmission Guard
  • Bio-oil Factory Fill

Technology Solutions
  • Measure - Compaction Meter Value (CMV)
  • Map - SBAS GNSS Mapping
  • Connect - Cloud and Machine Connectivity
  • Cat® Command for Compaction

Other
  • Upgraded Halogen Light Package
  • Amber Rotating Beacon
