The hydraulic cylinder rebuild and repair process involves inspecting, disassembling, repairing or replacing parts, assembling, and testing to restore the equipment’s performance. When your hydraulic cylinder decreases in performance, it affects equipment efficiency and impacts daily production, fuel consumption, and operational costs.
Hydraulic cylinders play a key role in the daily operations of industrial and commercial businesses. Their ability to provide precise and powerful motion makes them essential to construction, manufacturing, mining, agriculture, harvesting, material handling, infrastructure, road construction, and many other applications.
In this article, we’ll explore the signs indicating a need for repair and understand the step-by-step process of rebuilding the hydraulic cylinder. We’ll also discuss the impact rebuilding has on your equipment’s performance and how you can extend your machine’s lifespan.
5 Key Signs Your Hydraulic Cylinder Needs Repair
Your hydraulic cylinder must be in top condition to ensure your machine’s highest performance. These signs indicate the need for repair:
- Leaking fluid: Red or yellowish fluid around or under your equipment might indicate cylinder leaks, which can happen internally or externally. Regular service to your hydraulic cylinder will help you prevent them.
- Excessive heat: Leaks and fluid contamination can cause your machine to overheat, compromising the equipment’s performance and safety.
- Unusual noises: Banging, grinding, squealing, or hissing coming from your equipment can indicate problems within the hydraulic cylinder and affect the operation.
- Physical damage: Bent parts, dents, or cracks in the hydraulic cylinder are common results of wear and tear from daily operations and clear signs that your cylinder needs repair.
- Loss of functionality: Erratic, slow, sluggish movements or the inability to fully extend or retract are signs that the cylinder has uneven pressure. This can be unsafe for operators. Before you start daily operations, check that your machine performs movements smoothly.
If you spot any of these signs, you might want to consider a professional repair or rebuild service. Thompson Tractor offers professional hydraulic cylinder rebuild services for equipment owners in Alabama and northwest Florida.

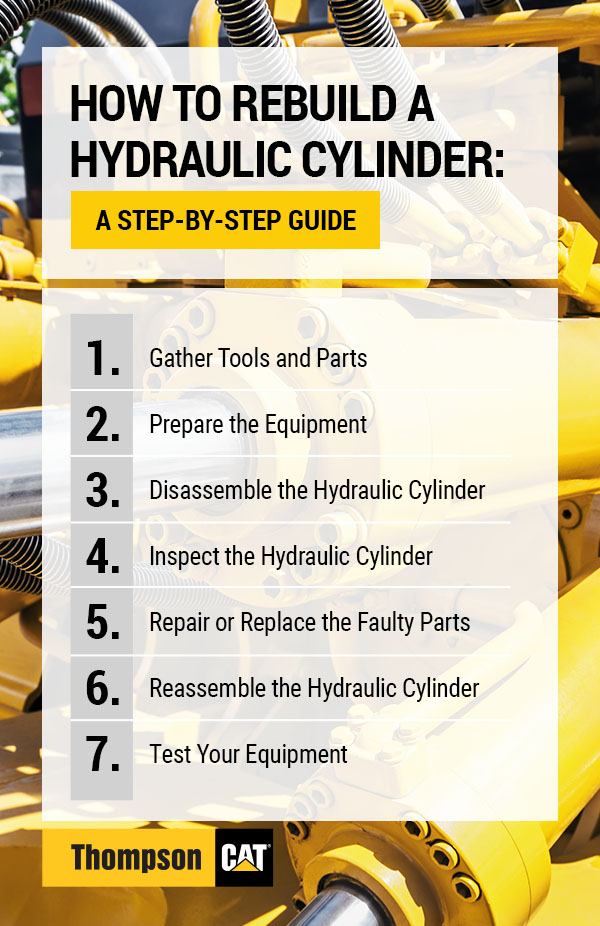

How to Rebuild a Hydraulic Cylinder: A Step-By-Step Guide
Our experts at Thompson Tractor compiled a step-by-step guide to help you repair and rebuild your hydraulic cylinder. Rebuilding a hydraulic cylinder requires experience and expertise using proper tools and techniques. Our technicians know different system types inside and out, and they follow all industry regulations and the original equipment manufacturer’s (OEM) manual.
1. Gather Tools and Parts
The first step to rebuilding your hydraulic cylinder is to gather all your tools and materials. Safety is essential when working with heavy equipment. To minimize the risk of injuries, wear the personal protective equipment (PPE) recommended by the Occupational Safety and Health Administration (OSHA).
Here is a list of tools you will need to work on your hydraulic cylinder:
- Wrenches
- Sockets
- Torque wrench
- Cleaning solvents
- Rags
- Hydraulic fluid
- Cylinder hone
- Hydraulic press
- Polishing machine
- Inspection tools
During the hydraulic cylinder rebuild process, you may need to repair or replace some of these parts:
- Hoses and couplings: Use a compatible fitting for your cylinder hose or find a dealer to manufacture one that meets your required specifications.
- Seals: Seals are designed to handle the increasing pressure and temperatures of the hydraulic cylinder. The right seals from your cylinder are essential to prevent leaks that lead to poor machine performance.
- Pumps and motors: High-quality pumps and motors are critical for your machine’s functionality. They allow your equipment to lift, move, or turn effectively.
- Cylinders and rods: Hydraulic cylinders and rods are responsible for the power and driving force your machine needs to operate in harsh conditions. The lack of proper maintenance can affect your equipment’s optimal functions.
Using the correct tools and high-quality parts reduces your machine’s downtime and increases the chances of a successful rebuild process.
2. Prepare the Equipment
Prepare your equipment before disassembling the hydraulic cylinder. Inspect, clean, and disconnect plugs and hoses, and make sure you have the correct tools and parts for the type of cylinder you are about to rebuild.
An essential part of preparing your equipment is running a hydraulic fluid analysis before draining the fluid. This will provide you with the fluid’s operating temperature, which influences the lubricating properties, viscosity, and effectiveness.
3. Disassemble the Hydraulic Cylinder
Disassembling a hydraulic cylinder requires practice and specialized equipment to avoid damage. Damage from disassembly can hide the real problem and make diagnosis more difficult.
During this process, you’ll carefully remove the cap and gland, extract the rod, and detach the piston to access its internal components. This is the most important step for a high-quality hydraulic cylinder repair.
4. Inspect the Hydraulic Cylinder
Visually inspect all the external and internal components of the hydraulic cylinder. Look for signs of leaks and wear and tear. The signs might look different for each component:
- Seals: Cracks or evident damage to the seals can be a sign of leaks.
- Rods: Bent, scratched, or rusted rods can create friction with the seal, impacting the cylinder’s performance.
- Walls: Scoring, rust, or imperfections can affect the piston movements.
Use inspection tools to find hard-to-see leaks, imperfections, and damage inside the cylinder.
5. Repair or Replace the Faulty Parts
After identifying the faulty parts, decide if they need to be repaired or replaced. Each part in a hydraulic cylinder will require a different approach. Follow the steps below:
- Remove worn or damaged seals and replace them with new ones. Ensure a proper fit to prevent leaks.
- Restore a rod’s functionality by using a hydraulic press to straighten it and a polishing machine to remove any imperfections.
- Ensure the piston moves smoothly by removing any scoring or rust from the cylinder walls.
There are times when the damaged parts are beyond repair. In this situation, replacing the part might be more cost-efficient and less time-consuming.
6. Reassemble the Hydraulic Cylinder
Reassembling a hydraulic cylinder requires knowledge of specific techniques and specifications. Before you start reassembling the cylinder with the new or repaired parts, ensure that the seals are compatible with the fluids and match the cylinder’s specifications.
Use lubricant to assemble the cylinder and pay additional attention to parts that are in constant friction during the machine’s operation. Ensure that all parts are properly aligned to prevent wear, tear, and the risk of failure.
After reassembling your hydraulic cylinder, consider painting it. This coating adds a layer of protection to your cylinder from environmental factors.
7. Test Your Equipment
After reassembling the hydraulic cylinder, it is time to test it to ensure it works smoothly and without damaging other components. Use the following as a guide for testing your equipment:
- Visual inspection: Visually inspect the cylinder for misaligned or damaged parts before and after the tests.
- Tests: Run static and dynamic tests to ensure a full range of motion, constant pressure, and no fluid leaks.
- Quality assurance (QA): Ensure the cylinder dimensions and component alignment meet your OEM-specified aftermarket standards.
- Quality standards: Hydraulic cylinders must comply with industry standards for safety and durability, such as those of the International Organization for Standardization (ISO) or the American Society for Testing and Materials (ASTM International).
- Documentation: Document all the steps in the rebuilding process and test results to provide a record of the cylinder repair.
The cylinder is ready for operation only after it successfully passes all tests and complies with the industry quality standards. To ensure you know the cause of damage or failure, consult a hydraulic cylinder repair and rebuild expert.
Preventive Maintenance for Hydraulic Cylinders
Preventive maintenance includes inspections, fluid monitoring, seal and rod protection, and contamination control at regular service intervals. It focuses on early detection of wear on parts, maintaining the correct fluid cleanliness and viscosity, and preventing internal damage that leads to pressure loss, drift, and premature failure.
Your business’s preventive maintenance program should follow a consistent schedule:
10-Hour Inspection (Daily)
The following checks should be performed every day to ensure the machine is fit for use:
- Check that the hydraulic fluid level is between Full and Add.
- Inspect all cylinder rods for scoring, pitting, or chrome damage.
- Examine wiper seals for tears or extrusion.
- Look for external leaks at rod glands, barrel seams, and hose connections.
- Check for unusual heat on cylinder barrels.
250-Hour Inspection (Monthly)
A more thorough walk-through should be completed each month to catch developing wear before it becomes a failure:
- Perform a full visual walk-around of the machine.
- Inspect the hydraulic cooler for debris or plugging.
- Check all hoses, tubes, and fittings for abrasions, bulges, or loose clamps.
- Verify mounting pins and bushings are still in excellent condition.
500-Hour Inspection (Quarterly)
Every quarter, perform deeper checks of fluid health and filtration to maintain your system’s cleanliness:
- Test an S·O·S℠ fluid sample for particle count, wear metals, viscosity, oxidation, and water content.
- Replace the hydraulic filter.
- Drain a small amount of fluid from the bottom of the tank to check for water or sediment.
Fluid Management
Proper fluid management practices extend component life and reduce the risk of contamination-related failure:
- Change hydraulic fluid every 1,000 to 2,000 hours, depending on the model.
- Always change the fluid when the machine has been running long enough for the fluid to warm up and circulate.
- Filter all new bulk oil before filling the machine.
- Use only genuine Cat® hydraulic oil.
Contamination Control
Keeping the system clean starts with good habits on and off the machine:
- Store equipment indoors or cover it when it’s not in use.
- Cap all hose ends and cylinder ports when disconnected.
- Protect hydraulic cylinder parts with plugs during storage.
- Maintain clean shop practices such as sweeping daily and using absorbent pads for spills.
When to Call a Professional
Routine hydraulic cylinder maintenance can be handled in-house, but certain cases require expert hydraulic cylinder service. Call a professional when you observe:
- Major external or internal leaks.
- Excessive cylinder drift beyond specification.
- Scored or bent rods.
- Repeated system overheating.
- High wear metal counts in S·O·S reports.
- Loss of smooth extension and retraction.
Thompson Tractor provides reliable cylinder rebuild services for these situations.
When to Rebuild vs. Replace
The right choice depends on your machine’s age and conditions, as well as how much downtime you can afford. Consider these factors:
| Rebuild | Replace | |
| Cost | Lower as it covers parts and labor only | Higher as it covers a completely new cylinder |
| Downtime | One to three days (in-house rebuild) | One to two weeks (order and delivery) |
| Equipment Age | Ideal for five- to 15-year-old machines or 4,000 to 10,000 hours | Better for very high-hour or severely damaged units |

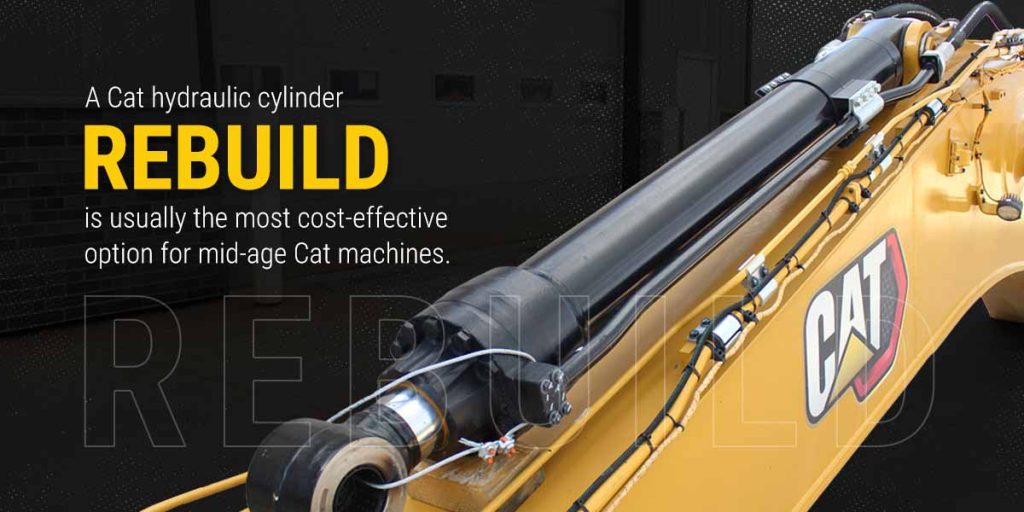

A Cat hydraulic cylinder rebuild is usually the most cost-effective option for mid-age Cat machines.
Frequently Asked Questions About Hydraulic Cylinder Repair and Rebuild
We aim to help you better understand how hydraulic cylinders and the repair and rebuild process work, answering your most frequent questions.
1. What Is the Life Expectancy of a Hydraulic Cylinder?
The life expectancy of a hydraulic cylinder depends on several factors, such as the industrial application, operating conditions, workload, operator, and maintenance plan. Regular maintenance or rebuilding can help extend the cylinder’s useful lifespan.
2. Can Hydraulic Cylinders Be Rebuilt, or Is Replacement a Better Option?
Hydraulic cylinders can be rebuilt. Rebuilding is a cost-effective solution for minor repairs to maintain performance or extend your machine’s lifespan. A replacement might be a better option when the cylinder is severely damaged or when equipment downtime is more expensive than the cost of a new cylinder. We recommend you consult with an expert to evaluate your situation and determine the best solution.
3. How Much Does It Cost to Rebuild a Hydraulic Cylinder?
The cost of rebuilding a hydraulic cylinder varies depending on several elements. Factors that affect a cylinder’s rebuild cost are its type and size, the damage it presents, and the parts that need to be replaced or repaired. Contact a reliable dealer for an accurate estimate on a hydraulic cylinder rebuild.
4. What Are the Benefits of Rebuilding a Hydraulic Cylinder?
Rebuilding a hydraulic cylinder offers several benefits:
- Cost-effectiveness: Rebuilding a hydraulic cylinder requires a lower investment than purchasing a new one.
- Extended lifespan: Repairing or replacing the worn components extends the hydraulic cylinder’s lifespan.
- Improved performance: A hydraulic cylinder rebuild restores your equipment’s performance, efficiency, and reliability.
- Preventive maintenance: Rebuilding can prevent downtime by addressing potential issues promptly.
- Environmental sustainability: Rebuilding reduces waste by repairing parts and extending your equipment’s useful life.
5. How Does Thompson Tractor’s Hydraulic Cylinder Repair and Rebuild Service Work?
We provide hydraulic cylinder repair and rebuild services in Alabama and northwest Florida. Our shop service is available seven days a week to ensure you get the service when you need it the most. Our trained technicians are experts at diagnosis and can provide major in-house repairs. Our extensive part inventory allows us to quickly service your cylinder, reducing downtime.
Schedule your service as soon as you spot signs that warrant repair, and you can leave the rest to us. We are your go-to solution for repairing and rebuilding hydraulic cylinders.
Professional Rebuild Services in Alabama and Northwest Florida
Thompson Tractor delivers full Cat equipment repair and other heavy equipment repair capabilities to restore your cylinder to like-new condition. Our technicians perform complete disassembly, precise measurement, rod polishing, cylinder honing, seal replacement, and pressure testing in a contamination-controlled environment. As a Cat dealer, our team uses Cat-approved hydraulic cylinder parts and follows Cat Certified Rebuild processes.
We are the local industry leader and your neighbors. For over 60 years, we’ve proudly served the Alabama and northwest Florida communities and understand your business’s demands. Our technicians are certified to provide hydraulic services for all brands and models, and they can tailor their services to your unique needs. Our team is experienced in all types of hydraulic cylinders and parts, and with our in-shop services, your equipment will be back in top condition.
Advantages of Working With Thompson Tractor for a Machine Rebuild
Rebuilding your hydraulic cylinder with the team at Thompson Tractor offers various benefits. With the Cat Certified Rebuild Program, you can capitalize on your existing equipment rather than investing in new machinery, supporting increased cost savings.
Our skilled technicians conduct detailed inspections and evaluations to determine the best course of action for rebuilding your cylinder, extending its lifespan. This process not only improves your equipment’s performance but also enhances its resale value, as updated components and well-maintained machines command higher prices.
Additionally, we provide a new three-year warranty along with a 5,000-hour extended protection plan for our rebuilds, ensuring peace of mind. With reduced turnaround times, you can minimize downtime and maximize efficiency. Our customer service team is here to answer your questions and guide you through every step of the rebuild process.
Trust Thompson Tractor to Rebuild Your Hydraulic Cylinder
Keeping your hydraulic cylinders in peak condition means your machines stay productive and your operation keeps running on schedule. Partnering with a Cat dealer ensures you get the best service to maintain your parts. Our service team is available daily across northwest Florida and Alabama to diagnose problems and rebuild your cylinder so you can get back to business.
